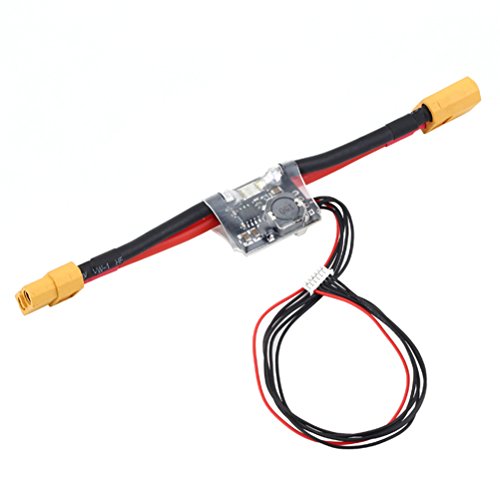

Pixnor APM2.5.2 APM2.6 Pixhawk Power Module V1.0 Output BEC 3A

Pixnor APM2.5.2 APM2.6 Pixhawk Power Module V1.0 Output BEC 3A XT60 Plug
- Material: durable PCB board and metal. Dimension: about 25 x 21 x 9mm.
- APM2.5.2 APM2.6 Pixhawk Power Module V1.0 Output BEC 3A XT60 Plug.
- XT60 Plug. Max input voltage: 30V. Max current sensing: 90A.
- Voltage and current measurement configured for 5V ADC.
- Switching regulator outputs 5.3V and 3A max.
Note:

The Power Module is only designed to power APM/Arduflyer, a RC receiver and accessories (GPS, Radio telemetry). It is not designed to power servos. Use your aircraft's own ESC/BEC for that.

Description

The item is a professional and practical Power Module, which is a simple way of providing your APM/Arduflyer with clean power from a LiPo battery as well as current coumption and battery voltage measurements, all through a 6P cable. The on-board switching regulator outputs 5.3V and a maximum of 3A from up to a 7S LiPo battery. It is special for APM2.5.2 APM2.6 Pixhawk flight controller.

Features

- Material: durable PCB board and metal.
- Dimeion: about 25 x 21 x 9mm.
- XT60 Plug.
- Max input voltage: 30V.
- Max current seing: 90A.
- Voltage and current measurement configured for 5V ADC.
- Switching regulator outputs 5.3V and 3A max.
--------------------------------------------------------

Package Including

1 * APM2.5.2 APM2.6 Pixhawk Power Module V1.0 Output BEC 3A XT60 Plug
Country USA
Brand PIXNOR
Color As Shown
EAN 0889736849295
Label Pixnor
Manufacturer Pixnor
MPN 1720225PNBL5005
PartNumber 1720225PNBL5005
Publisher Pixnor
Studio Pixnor
ReleaseDate 0000-00-00

Country	USA
Brand	PIXNOR
Color	As Shown
EAN	0889736849295
Label	Pixnor
Manufacturer	Pixnor
MPN	1720225PNBL5005
PartNumber	1720225PNBL5005
Publisher	Pixnor
Studio	Pixnor
ReleaseDate	0000-00-00

Pixnor APM2.5.2 APM2.6 Pixhawk Power Module V1.0 Output BEC 3A XT60 Plug
