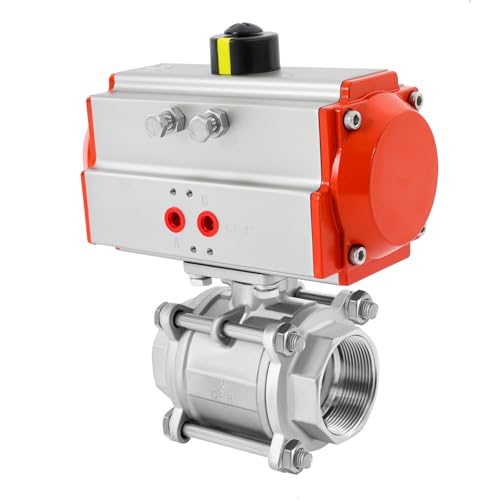

Pneumatic Ball Valve Actuator 2" Stainless Steel Three-Piece

Pneumatic Ball Valve Actuator 2" Stainless Steel Three-Piece Single Acting Air Return Automatic Control System (DN50)
- 【HIGH QUALITY MATERIALS】Our pneumatically executed ball valve is made of high quality raw materials (SUS 304 stainless steel body and aluminum alloy executive structural housing, with PTF sealing material) with high precision, wear resistance, safe and reliable.
- 【MAIN PARAMETERS 1】Port size: 2''; Nominal diameter: DN50; Pressure range: 0-1000 PSI/0-69bar; Control pressure: 3-8 bar / 43.5-116 PSI; Control function: single action; Medium temperature: -20℃~180℃ (-4°F~356°F); Ambient temperature: -20℃~60℃ (-4°F~140°F).
- 【MAIN PARAMETERS 2】Body material: SUS 304 stainless steel; Sealing material: PTFE; Executive structural housing: aluminum alloy; Suitable media: air, gas, liquid, water and steam; Packing size: 29cm x 21cm x 16cm (11.4'' x 8.3'' x 6.3''); Weight: 6.12kg/13.5lb.
- 【PROFESSIONAL BALL VALVE】This 304 stainless steel three-piece single-acting pneumatic ball valve is used to control the valve switch to control the material flow in the pipeline. Valve features dual limit, over heat, over load protection (optional). Ball valve stem explosion-proof design, fire protection design.
- 【WIDE APPLICATION】Suitable for stainless steel pipe systems, food, beverage, pharmaceutical, chemical and other pure production lines, industrial environmental protection, water treatment, high-rise buildings.
Country USA
Brand HYYKJ-US
Manufacturer LianDu-US
ItemPartNumber BI-232
Model DN50
Color 2'' DN50 Single-acting Valve
Size 2 inches
UnitCount 1
UPCs 738627792359
EANs 0738627792359
ReleaseDate 0000-00-00

Country	USA
Brand	HYYKJ-US
Manufacturer	LianDu-US
ItemPartNumber	BI-232
Model	DN50
Color	2'' DN50 Single-acting Valve
Size	2 inches
UnitCount	1
UPCs	738627792359
EANs	0738627792359
ReleaseDate	0000-00-00

Pneumatic Ball Valve Actuator 2" Stainless Steel Three-Piece Single Acting Air Return Automatic Control System (DN50)
