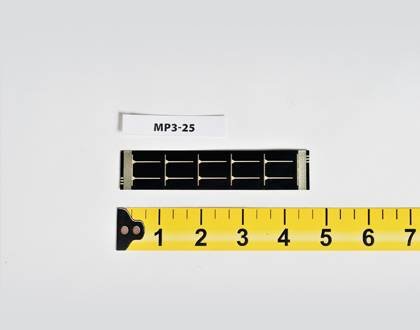

Powerfilm 3V 25mA Flexible Solar Panel MP3-25

Powerfilm 3V 25mA Flexible Solar Panel MP3-25

These PowerFilmTM flexible solar modules can be used alone to direct-power your small DC project (anything that runs off 3V or less and requires 25mA of current or less) - or, they can be used in your battery-charger project to store energy for later use. BATTERY-CHARGING TIPS.For battery charging, the voltage of your solar panel MUST be higher than the voltage of the battery that you want to charge. We recommend using the following guidelines: at least 2.0 volts to charge one 1.2 volt battery ,at least 3.6 volts to charge two 1.2 volt batteries wired in series ,at least 4.8 volts to charge three 1.2 volt batteries wired in series ,at least 6.0 volts to charge four 1.2 volt batteries wired in series.Multiple panels can be wired together to increase voltage or current, and the panels can be cut (following directions!) for your special project.Each module is encapsulated in 3 mil clear polyester film.Specs: Output 25mA @ 3V ,Open-circuit voltage: 4.1V ,Total size 4.5" X 1" ,Total solar cell area: 3.9" X 1" ,Total thickness: 0.22mm (8 mil) ,Weight: a few grams

Country	USA
Binding	Electronics
Brand	PowerFilm, Inc.
Feature	Powerfilm 3V 25mA Flexible Solar Panel MP3-25
Label	Powerfilm
Manufacturer	Powerfilm
Model	MP3-25
MPN	MP3-25
PartNumber	MP3-25
Publisher	Powerfilm
Studio	Powerfilm
ReleaseDate	0000-00-00
