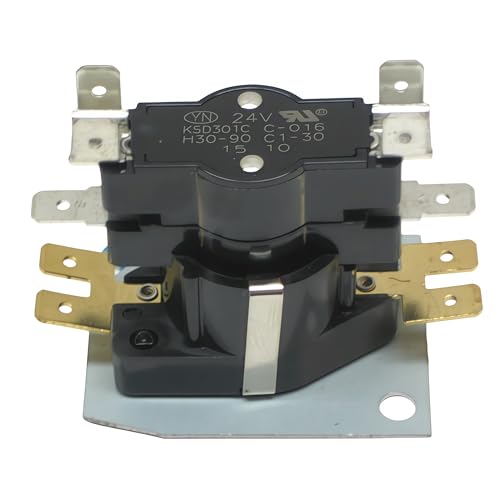

Q104 Compatible with Electric Heat Sequencer Control DPST 24 Volt / 24A34-4/525-37325-000

Q104 Compatible with Electric Heat Sequencer Control DPST 24 Volt / 24A34-4/525-37325-000
- Q104 Compatible with Electric Heat Sequencer Control DPST 24 Volt / 24A34-4 / 525-37325-000
- Parts Connect Sequencer part number PCQ104.
- 24 Volts. DPST. 1 Timing / 2 Switch. Off 1-30 Seconds. On 30-90 Seconds.
- PSQ Models are Direct Replacement for Most Fan / Heat Sequencing Functions.
- Terminal Markings are Equivalent to Competitive Types.
- Replacement for Numbers: HN67QC006, DGS104, 51172-22, 33244, 33845, Napco NS104, Q104, 24A34-4, TDR25, 525-37325-000
- COMBINED LOAD RATING TABLE. (ALL MODELS). 30A @ 240 VAC TOTAL, 23A Non-Inductive + 7 FLA. / 42 LRA
- ON Time: Elapsed time to make contacts after. heater is energized (min. to max.). OFF Time: Elapsed time to break contacts after. heater is de-energized (min. to max.). M1-M2 and M3-M4 are always first switches. to turn ON and last to turn OFF. All other. switches are random ON and random OFF.
- NOTE. fan interlock circuit to insure the blower. remains operating whenever more than one. sequencer is used. The fan interlock should. be the M1/ M2
- contacts of the second or third sequencer. All M1/ M2. contacts are wired to the blower. motor so that any sequencer that is energized. will keep the blower ON.

Country	USA
Brand	Generic
Manufacturer	Generic
ItemPartNumber	Q104 24A34-4 525-37325-000
Model	Q104 24A34-4 525-37325-000
Warranty	0.
Color	As shown in the figure
UnitCount	1
UPCs	777619273063
EANs	0777619273063
ReleaseDate	0000-00-00
