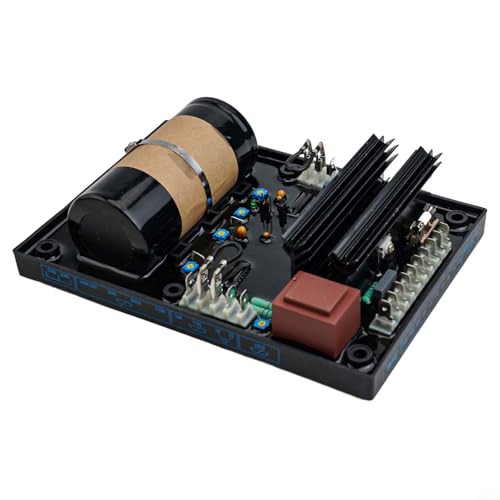

R448 AVR Voltage Regulator Module Card Voltage Regulator

R448 AVR Voltage Regulator Module Card Voltage Regulator Enhancer Automatic Voltage Regulator Control Module Replacement For Leroy Somer Genset
- 【Voltage Regulation】The R448 Automatic Voltage Regulator (AVR) features a closed-loop control circuit that regulates the exciter field current to ensure a stable output voltage. It uses a proportional voltage shunt and stator current composite characteristic to maintain voltage stability. The primary and secondary windings, along with a PMG, work together to provide a consistent voltage supply.
- 【Multiple Adjustments】The AVR offers various adjustment options for optimal performance. It provides quadrature droop adjustment, voltage adjustment, stability adjustment, LAM threshold (underspeed) adjustment, and excitation upper limit adjustment. These customizable settings allow for precise voltage control.
- 【Configuration】The AVR can be set for single or three-phase operation, making it compatible with different power systems. It also offers options for voltage sensing, response time selection, frequency (50 Hz or 60 Hz) preference, and remote voltage adjustment. The frame and excitation system according to specific requirements.
- 【Reliable and Sturdy】Constructed with ABS and metal materials, the Automatic Voltage Regulator ensures reliability and durability. It can withstand varying input voltages ranging from 70-140V AC and has a reaction measurement range of 90-480V AC. The regulator is designed to provide a maximum output of DC 10A 125V.
- 【Wide Application】This AVR is designed for compatibility with LSA R448 for models 2, 43.2, 44.2, 46.2, 47.2, and 49.1. It is also compatible with R448 V50 for LSA 50.2. Additionally, it can be used with SHUNT, compound, or excitation systems. The Automatic Voltage Regulator is suitable for various applications in generators and power supply systems.
Country USA
Brand Cloudpower
Manufacturer Cloudpower
Binding Kitchen
ItemPartNumber TL21192ZVN69B0CLA0QCD071DHS3IL
Model TL21192ZVN69B0CLA0QCD071DHS3IL
Color Black
Size Standard
ReleaseDate 0000-00-00

Country	USA
Brand	Cloudpower
Manufacturer	Cloudpower
Binding	Kitchen
ItemPartNumber	TL21192ZVN69B0CLA0QCD071DHS3IL
Model	TL21192ZVN69B0CLA0QCD071DHS3IL
Color	Black
Size	Standard
ReleaseDate	0000-00-00

R448 AVR Voltage Regulator Module Card Voltage Regulator Enhancer Automatic Voltage Regulator Control Module Replacement For Leroy Somer Genset
