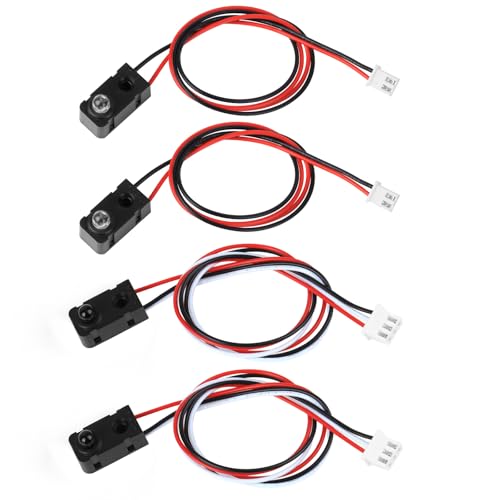

Ransanx 2PCS IR Break Beam Sensor 5MM LEDs Counting Module

Ransanx 2PCS IR Break Beam Sensor 5MM LEDs Counting Module Split Through-Beam Photoelectric Switch for Apply Relay, K60, PLC, 51 microcontroller, STM32,Cable Length 30cm,Test Distance 1M
- 【IR Break Beam Sensor】is the abbreviation of photoelectric proximity switch, which uses the beam of light of the detected object Occlusion or reflection is controlled by a synchronous circuit to detect the presence or absence of objects. Objects are not limited to metals,All reflective objects can be detected, with high sensitivity, fast response speed and good stability Faster than PIR sensors for better control of where you want to detect motion
- 【Sensor parameters】Detection distance: 1M, sensing mode: light speed interruption (infrared), working voltage: DC5V, working current: emission (20mA) reception (10mA), output current: 70mA (can directly drive the relay), emission angle: < 5 °, receiving angle: < 10 °, working temperature: -10 ° C~ 60 ° C, working environment: indoor (not waterproof),Working life: 50,000 hours，The terminal spacing is 2.54; the corresponding adapter connector needs to be equipped with a male plug of xh2.54
- 【Output mode】NPN normally open, response time: 2ms
- 【Note】That is, the red wire is connected to the positive electrode, the black wire is grounded, and the yellow (white) wire is connected to the signal. Add 1K pull-up resistor between the positive electrode and the signal to directly connect to the microcontroller I0 port
- 【After-sales service and applicable models】if you have any questions about the product, please contact us, we are 24 hours online, we will be the first time for you to solve the problem, looking forward to your visit, suitable for relays, K60, PLC, 51 microcontroller, STM32, for arduino and so on
Country USA
Brand Ransanx
Manufacturer Ransanx
ItemPartNumber IR Break Beam Sensor 5MM
Model 84b67e80-53f2-41b6-b8d3-2ebb647359cc
Size 2PCS
UnitCount 2
ReleaseDate 0000-00-00

Country	USA
Brand	Ransanx
Manufacturer	Ransanx
ItemPartNumber	IR Break Beam Sensor 5MM
Model	84b67e80-53f2-41b6-b8d3-2ebb647359cc
Size	2PCS
UnitCount	2
ReleaseDate	0000-00-00

Ransanx 2PCS IR Break Beam Sensor 5MM LEDs Counting Module Split Through-Beam Photoelectric Switch for Apply Relay, K60, PLC, 51 microcontroller, STM32,Cable Length 30cm,Test Distance 1M
