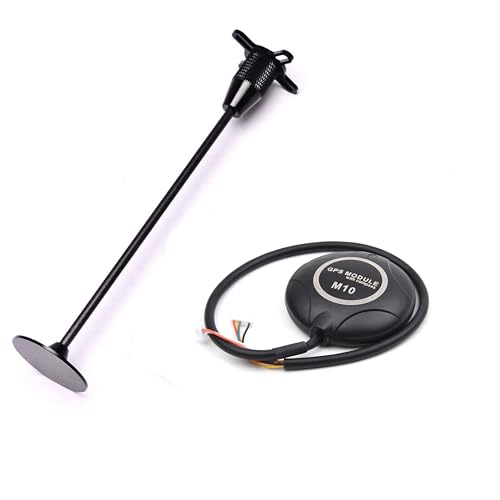

Readytosky M10 GPS Module External Compass with GPS Holder for

Readytosky M10 GPS Module External Compass with GPS Holder for PIX Pixhawk 2.4.8 Flight Controller
- Special designed for Pixhawk 2.4.8 flight controller, ASIN:B07CHQ7SZ4.
- A new generation M10 GPS,with low power consumption and high precision. Positioning accuracy (ideal environment): 1.5m CEP
- FLASH: Onboard FLASH, which can be saved after configuration modification and will not be lost when the power is off
- Attention: The GPS can only use in Pixhawk Flight controller,it can't work with other flight controller.
GPS Specs:

- Receiver type 72-channel u-blox M8 engine
- GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
- SBAS L1 C/A: WAAS, EGNOS, MSAS
- Galileo-ready E1B/C (M8N)
- Nav. update rate1 Single GNSS: up to 18 HZ
- Concurrent GNSS: up to 10 Hz
- Position accuracy2 2.0 m CEP
- Acquisition2 Cold starts: 26 s
- Aided starts: 2 s
- Reacquisition: 1.5 s
- Sensitivity2 Tracking & Nav: -167 dBm
- Cold starts: -148 dBm
- Hot starts: -156 dBm
- Assistance AssistNow GNSS Online
- AssistNow GNSS Offline (up to 35 days)3
- AssistNow Autonomous (up to 6 days)
- OMA SUPL & 3GPP compliant
- Oscillator TCXO ,
- Crystal
- RTC crystal Built-In
- Noise figure On-chip LNA . Extra LNA for
- lowest noise figure
- Anti jamming Active CW detection and removal. Extra
- onboard SAW band pass filter
- Memory ROM or Flash
- Supported antennas Active and passive
- Odometer Travelled distance
- Data-logger For position, velocity, and time
- Operating temp. -40° C to 85° C
- Storage temp. -40° C to 85° C
- -40° C to 105° C
- RoHS compliant (lead-free)

Package includes

1xM8N GPS Module Built-in Compass
- 1x Black GPS Holder

★Important:
The GPS light only can light up when it search the satellite signal outdoor.
ROM already been fix，it cannot be flash and change.We left a connector for APM extra,If you need used for APM, you can install the connector by yourself.
Country USA
Brand Readytosky
Manufacturer Readytosky
Binding Toy
ItemPartNumber 8NGPSP01
Model XGT60-BLACK
Color Black
Size standard
UPCs 757450335106
EANs 0757450335106
ReleaseDate 0000-00-00

Country	USA
Brand	Readytosky
Manufacturer	Readytosky
Binding	Toy
ItemPartNumber	8NGPSP01
Model	XGT60-BLACK
Color	Black
Size	standard
UPCs	757450335106
EANs	0757450335106
ReleaseDate	0000-00-00

Readytosky M10 GPS Module External Compass with GPS Holder for PIX Pixhawk 2.4.8 Flight Controller
