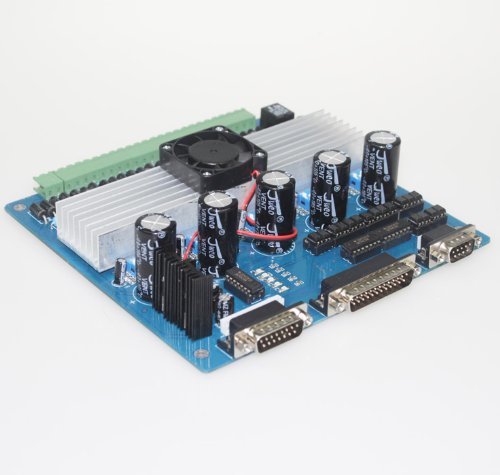

RioRand CNC Router 5 Axis TB6560 3.5A Stepper Motor Driver

RioRand CNC Router 5 Axis TB6560 3.5A Stepper Motor Driver Board Controller
- Powered by RioRand Advanced Technology
- Adjustable drive current settings for each axis - 25%,50%,75%,100% of full current can be set for different stepper motors
- Relay spindle interface - Outputs Max. 36V 7.5A for spindle motors or coolant pump (only one device can be powered by this output.)
- Bipolar constant current chopper drive with non-resonant region - Controls motors smoothly through range without creep effect.
- Four control inputs (divided into pairs of knives) - Allows setting of limit and emergency stop .
Important Notes:

Power supply DC 12-36V (not included)
Voltage Selection:

12-16V DC power supply for Nema 17 stepper motors
16-24V DC power supply for Nema 23 stepper motors
24-36V DC power supply for Nema 34 stepper motors
(High voltage will burn up the chips or stepper motors.)
Ampertage Selection:

Output current of the power supply can be calculated by the following expressions:

Output current = Rated current of your stepper motors * quantity + 2A (For example, if you want to drive 3 * 3A Nema 23 stepper motors, theoretically 24V 11A DC power supply is recommended, but higher power such as 24V 15A also will be good. If you are not sure about the selection of power supply, please feel free to contact us for help)

The power output of 12V shall be applied to the radiator fan of 12V
Driver output compatible with 2 or 4 phase, 4,6 or 8 lead stepper motors, 3A max.
Suitable for unipolar or bipolar stepper motors.

Voltage regulated spindle speed controlled by parallel interface as function of supply voltage. Package list :

1 * 5 Axis TB6560 Stepper Motor Driver 1.5A-3A
7 * Connectors
1 * DB25 parallel cable
1 * CD software(English Manual & Mach3 demo version)
