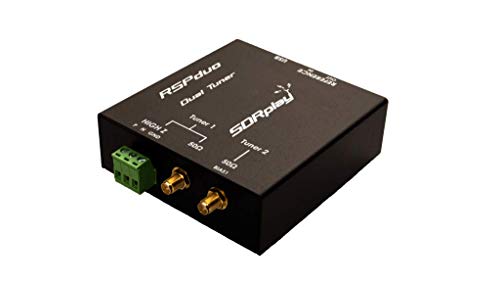

SDRplay Duo RSP Dual Tuner 14-bit SDR Radio Spectrum

SDRplay Duo RSP Dual Tuner 14-bit SDR Radio Spectrum Processor/Includes SDR-UNO Software
- Dual tuner provides independent coverage from 1 kHz to 2 GHz using 2 antenna ports simultaneously - 14-bit ADC silicon technology (not another 8 bit dongle!)
- Up to 10 MHz visible bandwidth (single tuner mode) or 2 slices of 2 MHz spectrum (dual tuner mode) - 3 software-selectable antenna ports ( 2 x 50 Ohms and 1 x 1k Ohms high impedance balanced/unbalanced input)
- High impedance antenna port (1 kHz to 30 MHz) with selectable MW notch filter and choice of 2 pre-selection filters - Software selectable AM/FM and DAB broadcast band notch filters for the 2 SMA antenna (1 kHz to 2 GHz) antenna ports
- External clock input and output enables easy synchronisation to multiple RSPs or external reference clock - Powers over the USB cable with a simple type B socket - 11 high-selectivity, built in front-end preselection filters on both the 2 SMA antenna ports
- Software selectable multi-level Low Noise Preamplifier - Bias -T power supply for powering antenna-mounted LNA - Enclosed in a rugged black painted steel case. - SDRuno-World Class SDR software for Windows
The SDRplay RSPduo is a dual-tuner wideband full featured 14-bit SDR which covers the entire RF spectrum from 1 kHz to 2 GHz giving 10 MHz of spectrum visibility. Combined with the power of SDRuno software for Windows, you can simultaneously monitor two completely separate 2 MHz bands of spectrum anywhere between 1 kHz and 2 GHz. The RSPduo provides three software selectable antenna inputs, and clocking features ideally suited to industrial, scientific and educational applications. All it needs is a PC and an antenna to provide excellent communications receiver functionality. A documented API allows developers to create new demodulators or applications around the platform. KEY BENEFITS * Simultaneously receive on two totally independent 2MHz spectrum windows anywhere between 1 kHz and 2 GHz * Simultaneous processing from 2 antennas enables direction-finding, diversity and noise reduction applications * Ideal for cross band full-duplex reception, e.g. HF + VHF or VHF + UHF * Simultaneous Dump1090 and VHF ATC reception * Simultaneous monitoring and recording of 2 ISM bands * Covers all frequencies from 1 kHz through VLF, LF, MW, HF, VHF, UHF and L-band to 2 GHz, with no gaps * Receive, monitor and record up to 10MHz of spectrum at a time (single tuner mode) * Software upgradeable for future standards * Calibrated S meter/ RF power and SNR measurement with SDRuno (including datalogging to .CSV file capability) * Ideal for portable monitoring of ISM/ IoT/ Telemetry bands 2GHz
Country USA
Binding Electronics
Brand SDRPlay
Label SDRPlay
Manufacturer SDRPlay
MPN SDRplay Duo
PartNumber SDRplay Duo
Publisher SDRPlay
Studio SDRPlay
ReleaseDate 0000-00-00

Country	USA
Binding	Electronics
Brand	SDRPlay
Label	SDRPlay
Manufacturer	SDRPlay
MPN	SDRplay Duo
PartNumber	SDRplay Duo
Publisher	SDRPlay
Studio	SDRPlay
ReleaseDate	0000-00-00

SDRplay Duo RSP Dual Tuner 14-bit SDR Radio Spectrum Processor/Includes SDR-UNO Software
