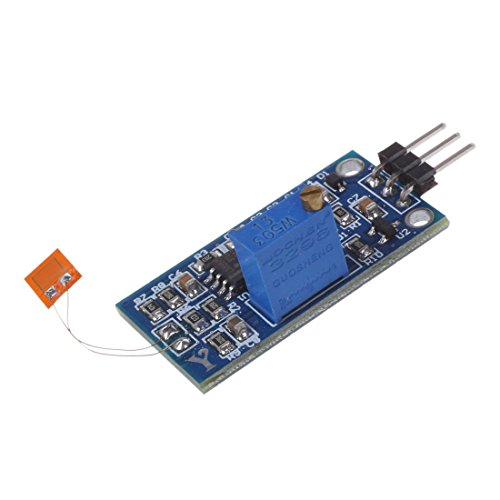

SODIAL(R) Strain gauge Bending detection Test Sensor Module

SODIAL(R) Strain gauge Bending detection Test Sensor Module Weigh Amplifier Voltage Output
- 100% Brand New and high Quality
- Model:BF350-3AA /1.5AA
- sensitivity coefficient：2.0
- strain limit：2%
- gate wire：length x width 2 x 3.5mm
Strain gauge Bending detection Test Sensor Module Weigh Amplifier Voltage Output
base dimensionsï¼šlength x width 5 x 4.5mm
base meterial: modified phenolic substrates
gate wire materialï¼šconstantan
resistanceï¼š350 Ohm
fatigue lifeï¼šGreater than 10 million times
fluxï¼šordinary solder rosin
the warking principle is based on resistance strain gauge strain effect producedï¼Œi.eã€‚ï¼Œwhen the conductor or semiconductor material ï¼Œmechanical deformation under the action of external forceï¼Œthe resistance value of the corresponding changesï¼Œa phenomenon know as "strain effect".
the strain gauge attached to the object to be measuredï¼Œso that as the strain of the measuring object bent togetherï¼Œ soï¼Œthat the inside of the metal foil is bent with the strain.many meatl when mechanically bending its resistance changes.
voltageï¼š5V
reverse protection diode~ï¼ˆto prevent power reversedï¼‰
board with a blue LED power indicator
analog output
the higher curvatureï¼Œthe greater of the output voltage
whith zero potentiometer
you can adjust the potentiometer output starting voltage
output analog voltage 0-3.5V
board sizeï¼š32 x 17mm
behind the printed board pin definitions
ï¼ˆbending strain gaugeï¼Œyou can change the output voltageï¼‰
package contents:
1 x strain gauge bending test sensor module
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
