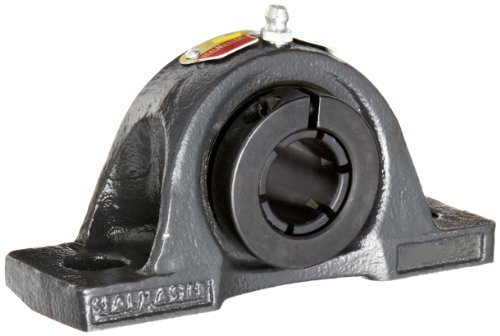

Sealmaster NPL-12TC Pillow Block Ball Bearing, Non-Expansion Type, Normal-Duty, Regreasable, Skwezloc Collar, Contact Seals, Cast Iron Housing, 3/4" Bore, 1-1/4" Base to Center Height, 3-3/4" Bolt Hole Spacing Width

The Sealmaster NPL-T low-base pillow block ball bearing has a cast-iron housing with two bolt holes, a Skwezloc locking collar, and contact seals. This ready-to-mount low-base unit has a solid one-piece cast-iron housing and is built for maximum strength and rigidity, with black oxide-coated bearing races for corrosion resistance. This relubricatable non-expansion-type bearing uses the Skwezloc locking collar, which centers the shaft in the bearing bore, securing the shaft with near-perfect concentricity for quieter operation at higher speeds and simpler installation. A single-lip contact seal protects against contamination and helps retain lubricant. The pillow block is suitable for carrying shafts with radial or radial-and-thrust loads and can be used in normal-duty applications.

Mounted bearings combine a bearing mounted inside a housing unit. The bearing housing replaces the need for a casting or weldment to position the bearing securely for reliable operation, and its design determines the type of insert bearing. Insert bearings use rolling elements (ball, cylindrical, spherical, barrel, needle, spindled, or tapered) to maintain the separation between moving parts to reduce rotational friction, and to support radial and axial loads. Available in a variety of materials and mounting configurations, mounted bearings can be one- or two-piece, they can have an extended inner ring and locking device, and they can have seals and end caps that retain lubrication and protect the working parts of the bearing from environmental debris. Mounted bearings support shafts in a variety of mounting configurations (flange block, hanger, pillow block, and take-up block), and are used in a range of applications from light duty shaft guidance on conveyors to road building equipment and crushers.

Sealmaster manufactures bearings and bearing accessories. The company, founded in 1938 and headquartered in Elsmere, KY, meets International Organization for Standardization (ISO) standard 9001.
