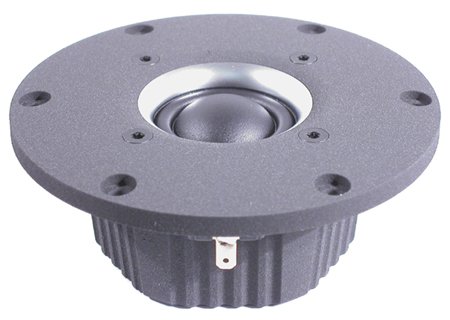

Seas Excel T29CF-002 Crescendo 1" Textile Dome Tweeter

Seas Excel T29CF-002 Crescendo 1" Textile Dome Tweeter (E0040-06)- Each
- Excel 1" Textile Dome Tweeter with Neodymium Magnet
- Sonotex dome and Hexadym neodymium magnet system
- Very transparent sound and exceptional low end roll off
- More efficient with larger magnet system
- 110.2mm flange with 85mm cut out hole
The T29CF002, "CRESCENDO" is an Ultra High End 29mm soft dome tweeter with a HEXADYM magnet system. An optimally shaped dome and integrated wide surround manufactured by SEAS from SONOMEX ensure excellent performance and consistency. A high efficiency HEXADYM magnet system (US Patent 6020805) based on 6 radially magnetized NdFeB magnet blocks provide efficient ventilation and damping of cavities behind the dome, surround and voice coil. Moderate magnetic stray fields represent no problems in AV installations. A generously underhung voice coil with flexible lead-out wires, ensures low distortion even with low crossover frequencies. A 6mm precision machined aluminium front plate with moderate horn loading ensures linear frequency response and reasonable efficiency. The central part of the horn is made from chrome plated precision machined brass. A substantial injection moulded rear chamber made from zinc eliminates unwanted chamber wall resonances and conducts heat away from the magnet system. The rear chamber and the front plate are Nextel painted to obtain a durable and attractive finish.
Country USA
Brand Seas
Manufacturer Seas
Binding Electronics
ItemPartNumber E0040
Model T29CF-002
ReleaseDate 0000-00-00

Country	USA
Brand	Seas
Manufacturer	Seas
Binding	Electronics
ItemPartNumber	E0040
Model	T29CF-002
ReleaseDate	0000-00-00

Seas Excel T29CF-002 Crescendo 1" Textile Dome Tweeter (E0040-06)- Each
