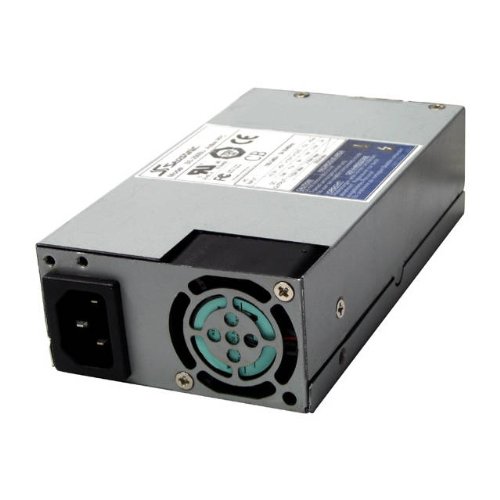

Seasonic 250SU 250W 80Plus 1U Server Power Supply (SS-250SU APFC F0)

Specifications

• Mfr Part Number: SS-250SU APFC F0
• Features:
  • Specification compliance: Flex ATX v1.01
  • Forward converter circuit
  • High efficiency and reliability
  • Zero minimum load on 3.3V rail
  • Low ripple & noise
  • Super low noise fan control
  • Short circuit protection on all outputs
  • Over voltage protection & Over power protection
  • 100% hi-pot test
  • 100% burn in, high temperature cycled on/off
  • PFC harmonics compliance: EN61000-3-2 +A1 +A2
• Type: ATX12V
• Total Power: 250 W
• Input Type: Full Range
• Input Frequency: 50/60 Hz
• Ripple / Noise: 1%
• Efficiency: >80%
• Output: +3.3V @ 14A; +5V @ 17A; +12V1 @ 8A; +12V2 @ 14A; -12V @ 0.8A; +5VSB @ 2A
• Connectors: 1x 20/24 pin Main Connector; 1x P4 ATX12V; HDD; FDD
• Dimension (WxLxH): 3.2 x 5.9 x 1.6 inch / 81.5 x 150 x 40.6 mm
• 80 Plus Certified
• OEM Seasonic Power Supply doesn't come with Power Cord. Need to bundle with item # POWERCORDS (6 ft Power cord)
