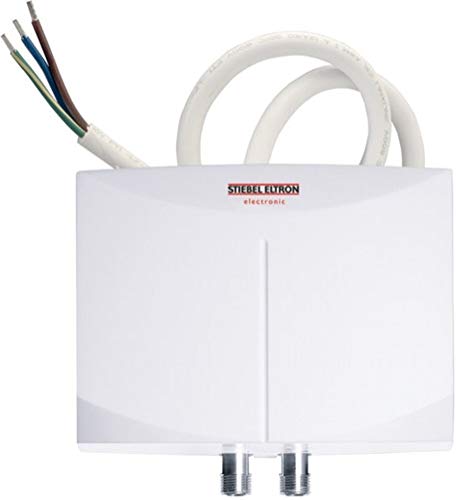

Stiebel Eltron 236135 Model Mini-E 2.5-1 Thermostatic Handwashing Sink Tankless Electric Water Heater, 120V, 2.4kW, 20A, 0.026 Gallon Water Volumen, 150 psi/10 BAR Working Pressure

Stiebel Eltron 236135 Model Mini-E 2.5-1 Thermostatic Handwashing Sink Tankless Electric Water Heater, 120V, 2.4kW, 20A, 0.026 Gallon Water Volumen, 150 psi/10 BAR Working Pressure

The Stiebel Eltron Mini tankless water heaters are designed for installation at the point-of-use. The Mini heats water instantaneously as it flows through the unit. Stand-by heat-losses are completely eliminated. The efficient heating elements are controlled by a simple flow switch. Additionally, all Mini water heaters are equipped with a safety high-limit with manual reset. Mini-E thermostatic tankless water heaters are the new electronically controlled version of our famous Mini tankless electric water heaters for handwashing.

• Code-compliant thermostatic control
• Factory set at 100°F
• Adjustable temperature output between 86-120°F
• Custom temperature settings available
• Extremely compact design
• Pre-wired pigtail included
• Major energy savings
• Unlimited supply of hot water
• Proven reliability
• Sleek design is appealing and can be mounted in plain sight
• Can be mounted with fittings pointing up or down

• Phase - 50/60 Hz: 1
• Voltage: 120V
• Wattage: 2.4kW
• Amperage draw: 20A
• Min. recommendedcircuit breaker size: 20A (SP)
• Min. recommended wire size (copper): 12 AWG
• Min. flow to activate: 0.30 GPM 1.15 l/min
• Water temp. range: Electronic units are adjustable from 86-122°F/30-50°C
• Energy Factor: 0.99
• Water volume in unit: 0.026 gal/0.1 l
• Working pressure: 150 psi/10 BAR
• Tested to pressure: 300 psi/20 BAR
• Water connections: 3/8" O.D. flexible braided stainless steel hose connectors
• Dimensions (HxWxD): 6½" x 7½" x 3¼"
• Weight: 3.44 lb
