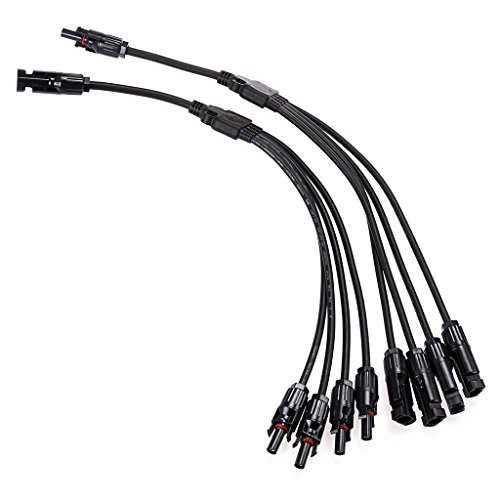

Sumnacon® MC4 Solar Style Branch Panel Cable Connector (Y Type(1 to 4))
- 1 Pair of Y Type(1 to 4) MC4 Solar Panel Cable Connectors：1 male to 4 female(M/FFFF) and 1 female to 4 male(F/MMMM)
- Double seal rings for better waterproof effect. Compatible with PV cables with different insulation diameters. It can be used in harsh environment
- With excellent aging resistance and UV endurance. Created seal, design of dust proof. Load capability with big current and high voltage
- Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument. Strong pulling force capability
- Resistance of extra high & low temperature and fireproof. Lower contact resistance
Description:

These are Y Type(1 to 4) MC4 Style Branch Connector Cables which are approved by CE, TUV. This Y Style MC4 compatible Solar Cable Connector Set is a perfect solution to parallel connect multiple panels together in a solar field, and is typically used in parallel applications.

Specification:

- main cable specificationï¼š6mm2(AWG10)
- Branch cable specificationï¼š4mm2(AWG12)
- Rated Current: 30A
- Rated voltage: 1000VDC
- Contact resistance: â‰¤0.2mmÎ©
- Waterproof degreeï¼šIP67
- Flame class: UL94-VO
- Safety Class: â…¡
- Withdrawal force: â‰¥50N
- Insertion force: â‰¤50N
- Insulation material: PPO + PA
- Connecting system: crimping connection
- Temperature range: -40 â„ƒ ~ +90 â„ƒ

Package includes:

- 1 Pair of Y Type (1 to 4) MC4 Solar Panel cable Connectors(Male & Female)
Country USA
Brand Sumnacon
EAN 0711274304106
Label Sumnacon®
Manufacturer Sumnacon®
MPN 51
PartNumber 51
Publisher Sumnacon®
Size Y Type(1 to 4)
Studio Sumnacon®
ReleaseDate 0000-00-00

Country	USA
Brand	Sumnacon
EAN	0711274304106
Label	Sumnacon®
Manufacturer	Sumnacon®
MPN	51
PartNumber	51
Publisher	Sumnacon®
Size	Y Type(1 to 4)
Studio	Sumnacon®
ReleaseDate	0000-00-00
