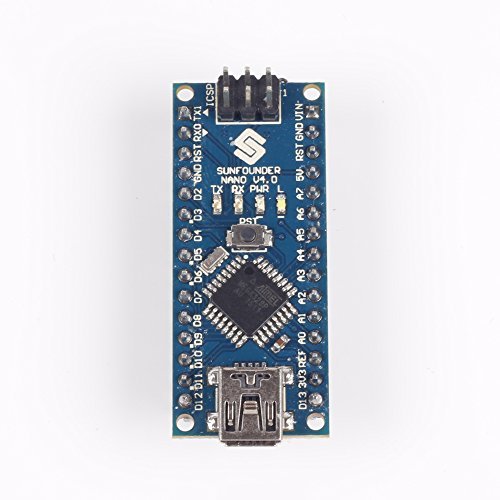

SunFounder Mini USB Nano V4.0 ATmega328P 5V Micro Controller Board for Arduino Compatible
Product Description
SunFounder Mini USB Nano V4.0 ATmega328P 5V Micro Controller Board for Arduino Compatible
- Sunfounder Nano is created by the purpose of repairing a defect on the Arduino Nano ,it is the same in general and can replace the Arduino Nano 3.0.
- The Sunfounder Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x) or ATmega168 (Arduino Nano 2.x).
- It has more or less the same functionality of the Arduino Duemilanove, but in a different package.
- It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.
- Before using, please check this link http://wiki.sunfounder.cc/index.php?title=SunFounder_Nano_Board
Microcontroller : Atmel ATmega168 or ATmega328
Operating Voltage (logic level) : 5 V
Input Voltage (recommended): 7-12 V
Input Voltage (limits): 6-20 V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 8
DC Current per I/O Pin: 40 mA
Flash Memory: 16 KB (ATmega168) or 32 KB (ATmega328) of which 2 KB used by bootloader
SRAM : 1 KB (ATmega168) or 2 KB (ATmega328)
EEPROM: 512 bytes (ATmega168) or 1 KB (ATmega328)
Clock Speed: 16 MHz
Dimensions: 0.73" x 1.70"
Length : 45 mm
Width: 18 mm
Weigth: 5 g
Technical Specifications
