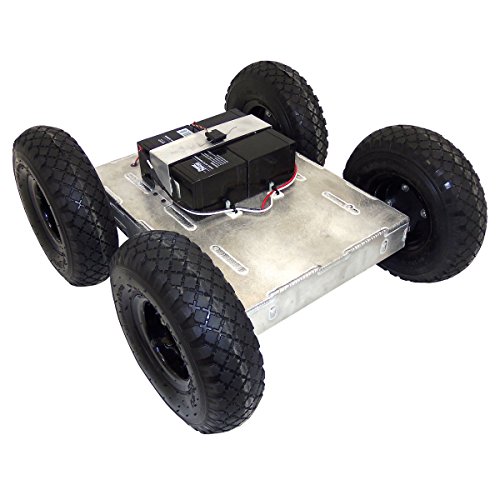

SuperDroid Robots 4WD All Terrain Heavy Duty Robot Platform -

SuperDroid Robots 4WD All Terrain Heavy Duty Robot Platform - IG42 DB
- 4WD All Terrain Robot with 42mm motors, motor controller, batteries, chargers, and remote
- Completely Assembled and Tested. Ready to Run
- Drive this robot up to 265 feet per minute. Differential/Skid Steering
- Dual Ball Bearing for each steel axle. 6inch pneumatic wheel. Chain Drive
- Handles 40lbs of additional payload in most terrains
These All Terrain Robots (ATRs) are designed and fabricated in North Carolina USA and fully supported by SuperDroid Robots, an industry leader in robotics. The Robot is model number TP-170-042. The chassis is a rigid gusseted aluminum frame that is precisely fabricated using state of the art CNC equipment. The wheels are mounted on solid steel axles which are supported by ball bearings. Each axle/wheel is driven by a planetary gear motor delivering smooth reliable power. The robot uses differential steering (movement is based on two separately driven wheels placed on either side of the robot body. It can thus change its direction by varying the relative rate of rotation of its wheels).

Includes chassis, hardware, electronics, etc.
Four heavy duty IG42 planetary 252 RPM gear motors (one per axle/wheel) connected to axle by chain and sprocket.
6 inch pneumatic wheels with solid steel axles and ball bearing supports.
Handles 40lbs of additional payload in most terrains.
Variable speed and direction differential drive/steering.
The standard motors drive this robot up to 265 feet per minute.
24V SLA batteries with 7Ahrs of capacity providing 1.5-3 hours of operation depending on use.
Includes battery chargers.
This robot comes complete with a motor controller.
This robot includes a Spektrum Dx5 remote control to wirelessly drive the robot.
The total weight of this configuration is ~28 lbs.
Fully assembled and tested.
Country USA
Brand SuperDroid Robots
Manufacturer SuperDroid Robots
ItemPartNumber TP-170-042
Model TP-170-042
UnitCount 1
UPCs 617723890254
EANs 0617723890254
ReleaseDate 0000-00-00

Country	USA
Brand	SuperDroid Robots
Manufacturer	SuperDroid Robots
ItemPartNumber	TP-170-042
Model	TP-170-042
UnitCount	1
UPCs	617723890254
EANs	0617723890254
ReleaseDate	0000-00-00

SuperDroid Robots 4WD All Terrain Heavy Duty Robot Platform - IG42 DB
