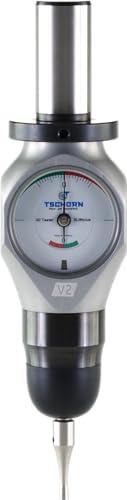

TSCHORN 3D Tester Edge Finder DREHplus V2, 3/4" (19.05mm) Shank, 0.14" - 0.12" (3.6-3.2mm) Sensing Tip, Measuring All Axes & Rotating Center, 4940-0034

TSCHORN 3D Tester Edge Finder DREHplus V2, 3/4" (19.05mm) Shank, 0.14" - 0.12" (3.6-3.2mm) Sensing Tip, Measuring All Axes & Rotating Center, 4940-0034
- 3D TESTER DREHPLUS, The plus for your lathe. Tool measurement in all axes and the rotating center (Y) - very quickly and easily with the 3D Tester DREHplus!
- The conical probing corpus of our innovative technology enables you to measure cutting inserts with different radii and/or angles at any point of the probing corpus. Measuring is done until both indicators display "0", positioning the conical probing corpus precisely on the symmetry axis.
- It is crucial to measure your tools accurately in all axes, especially in Y. The 3D Tester DREHplus is designed with a patented conical probing corpus, making it possible to measure the center of the spindle in both X and Y axes directly. There is no need for further calculations because X = 0 and Y = 0.
- Shank Diameter: 3/4" (19.05mm); Sensing Tip: 0.14" - 0.12" (3.6 - 3.2mm); Graduation: 0.0005"; Type: 3-D Tester for Lathes; Diameter: 1.75" (44.5mm); Display Size: 1.53" (39mm); Height: 1.97" (50mm)
- Length: 7.01" (178.3mm); Length Without Shank: 5.35" (136mm); Reading: 0-40; Tip Size: 1.33" (34mm) long; Tool Material: Hardened Stainless Steel Tip;
Country USA
Brand TSCHORN
Manufacturer TSCHORN Probes & Tools Technology
ItemPartNumber 001V2T34I
Model 4940-0034
UnitCount 1
EANs 4260192273316
ReleaseDate 0000-00-00
