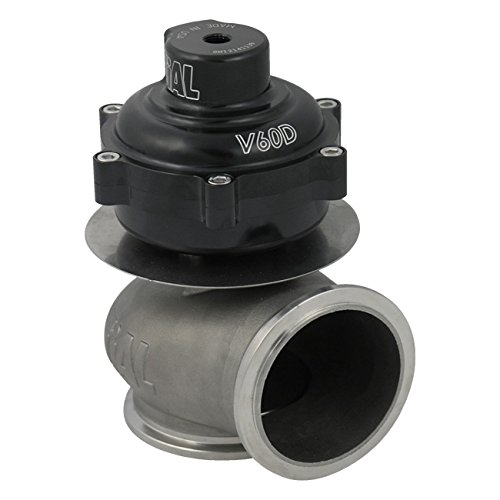

TiAL V60D Compressed Gas Wastegate - 2.90 psi/0.2 bar spring,

TiAL V60D Compressed Gas Wastegate - 2.90 psi/0.2 bar spring, Black Body
- Item ID: TIALWGV60D-2.90-BLK
- Size (spec): 60mm Valve; Outlet (spec): Discharge Flange Counterbored for 2-3/8" Tubing
- Pressure Rating (spec): 2.90 psi (0.2 bar)
TiAL V60D 60mm Wastegates are a specialize version of the V60 intended for use in the drag and professional motorsport circuits. These wastegates feature an advanced diaphragm tailored for use with direct high pressure compressed gas and CO2 actuation. The re-designed inverted reinforced diaphragm is now 25% smaller than before, resulting in direct pressure control, compact actuator size, lighter weight and faster fill rates. The new advanced diaphragm is capable of handling 8 bar (120 psi) of control pressure.

Just like the traditional V60, these TiAL wastegates are constructed from high temperature alloys for the valves and lower housings, CNC machined billet aluminum actuator housings and Nitronic 60 valve guides and seats. These high temperature materials were selected for their unique combination of high corrosion, wear and galling resistance properties. The billet aluminum actuator housing is lightweight and currently only available anodized black. The TiAL V60D Wastegate is available with two base spring pressures: 3 psi and 6 psi. All TiAL wastegates are designed to optimize actuator-to-valve area ratio to provide maximum control and a wide dynamic flow capacity.

TiAL V60D 60mm Compressed Gas Actuated Wastegate Features:
- Stainless Steel Valve Housing
- Aluminum Actuator Housing (Anodized Black)
- High Temp Alloy Racing Valve w/ Coated Stem (protects from leaded fuel)
- 25% Small Actuator Diaphragm
- Ideal for CO2 and Compressed Gas Actuation
- Stainless Steel Actuator Springs
- Stainless Steel Valve Seat
- Stainless Steel Valve Bushing
- Stainless Steel V-Band Flanges
- Stainless Steel V-Band Clamps
- Made in the USA

What's Inside the Box:
- V60D 60mm Wastegate Assembly
- V60 Valve Seat
- Two TiAL Air Fittings
- Inlet V-Band Clamp
- Inlet V-Band Flange
- Outlet V-Band Clamp
- Outlet V-Band Flange
Country USA
Brand TiAL Sport
Color Black
Label TiAL
Manufacturer TiAL
ManufacturerPartsWarrantyDescription Parts
MPN 005215
PartNumber 005215
Publisher TiAL
Studio TiAL
ReleaseDate 0000-00-00

Country	USA
Brand	TiAL Sport
Color	Black
Label	TiAL
Manufacturer	TiAL
ManufacturerPartsWarrantyDescription	Parts
MPN	005215
PartNumber	005215
Publisher	TiAL
Studio	TiAL
ReleaseDate	0000-00-00

TiAL V60D Compressed Gas Wastegate - 2.90 psi/0.2 bar spring, Black Body
