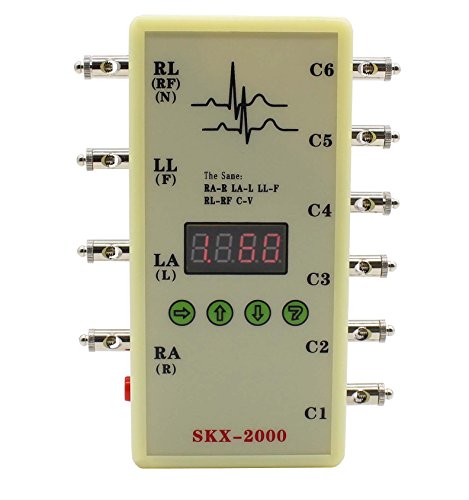

T-king SKX2000C ECG Signal Simulator ECG Signal Generator ECG

T-king SKX2000C ECG Signal Simulator ECG Signal Generator ECG Tester LED Display
- ECG Simulator built-in high-capacity lithium battery, you can repeatedly charge, pay attention to the charging voltage is not higher than 4.2V
- With 10 universal ECG adapter, with a variety of ECG machine and monitor the connection line to connect
- Increase the battery power low automatic shutdown function, protect the lithium battery
- Normal ECG waveform:simulation instrument power on automatically generated after the heart rate 60bpm
- Waveform type:Normal ECG waveforms or "+" And "-" triangular waveforms
Waveform method of operation:
ECG:
1.Heart rate setting range: 10-200 bpm; (initial value: 60 bpm)
2.Signal amplitude fixed
" +"" -" triangular waveform:
1.Frequency range: 10-300 bpm; (initial value: 75 bpm)
2.Amplitude range: 0.1-4Mv (10: 0.1kV, 400: 4mV)
3.Two modes, Mode 1: Forward waveform, Mode 2: negative waveform; selected by key combinations
Signal amplitude setting:
1.Amplitude range: 0.1mV-4mV (10: 0.1kV, 400: 4mV); (initial value: 100)
2.This margin setting will affect all waveforms.
3.Signal amplitude settings can not affect the ECG waveform amplitude.
Note:
1.This Simulator can not test Respiratory wave
2.Simulator LED display tube, when there is no operation key within five seconds, it will automatically shut down, Any key to turn
Package Include:
1 x ECG Simulator
1 x Charger
1 x Manual
Country USA
Brand T-king
EAN 0600346998926
IsAdultProduct
Label T-king
Manufacturer T-king
MPN SKX2000
PartNumber SKX2000
Publisher T-king
Studio T-king
ReleaseDate 0000-00-00
