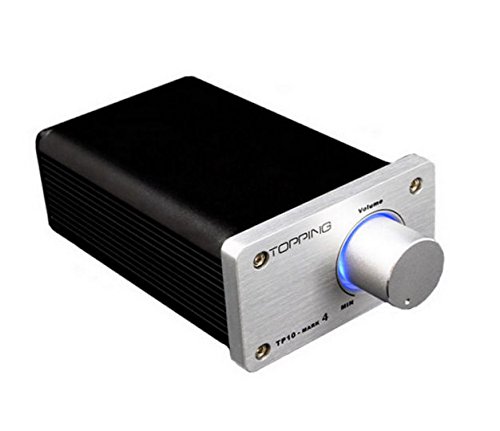

Topping TP10 MK4 Mark 4 2x15W Class-T TA2024 Digital Amplifier

Topping TP10 MK4 Mark 4 2x15W Class-T TA2024 Digital Amplifier Amp Tripath Power
- Includes: * 1 x TP10 Mk 4 Amplifier * 1 x 12v power supply(Not original and Plug adapter according to your country)
- The Topping TP-10 MK4 T-Amp is a so-called Class T integrated amplifier, based on the TA 2024 chipset. the chip makes use of a kind of "Digital Power Processing", this is, more or less, a Class D amplifier with high rate switching properties.
- That is why they put the word "digital" into it. Actually, there's nothing really digital inside, not in terms of D/A conversion.
Improvement of new MK4 Topping TP10 Amplifier as below:

A. A 'Songle' relay to cut off the speaker when turn-on & turn-off with switch, silent and safe to your speakerabsolutely when power on.

B. Double side gold coat PCB , pure copper 24K gold coat RCA sockets with Teflon silver wire in high quality soldering to I/O terminal.

C. We have improved the with film capacities and metal film resistors, EVOX, Dale also in use. sound most near to valve amplifier

D. Fully Aluminum Alloy Case with nonmagnetic and low noise.

Feature:

T-Amp IC Tripath TA2024

Output Power 2 x 15W @ 4ohm, 2 x 10W @ 8ohm

Signal-to-Noise Ratio (SNR) 98dB

Dynamic Range 98dB

IHF-IM Distortion 0.1% @ 1W, 4ohm THD Distortion

0.03% @ 9W, 4ohm

0.1% @ 11W 4ohm

0.1% @ 6W 8ohm

10% @ 15W 4ohm

10% @ 10W 8ohm

Power Efficiency 81% @ 15W, 4ohm, 90% @ 10W, 8ohm

Input Sensitivity 200mV

Audio IN RCA (Left/Right) x 1

Power socket (5.5mm/2.1mm) x 1

Output

Speaker OUT (Left) x 1 pair (+ / -)

Speaker OUT (Right) x 1 pair (+ / -)

Power Indicator (Blue LED) x 1

Power Supply input DC 12V~13.2V5A

Dimensions: (W)90mm x (H)50mm x (D)162mm

Weight 450g
