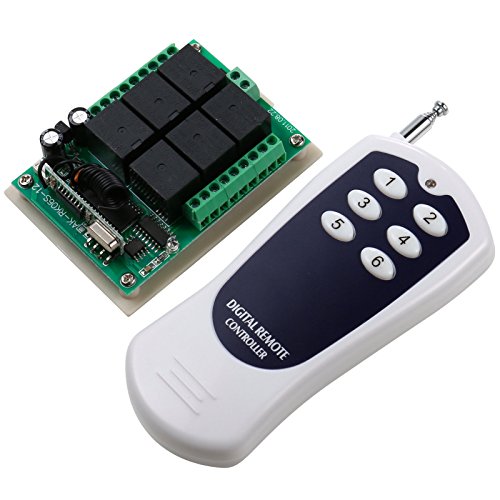

UHPPOTE 433mhz 12VDC 6 Channel Wireless Remote Control Switch Transmitter and Receiver

Receiver:
Model No.: AK-RK06S-12
Channel: 6CH
Radio Frequency: 433MHZ
Operating Voltage: DC12V
Coding Type: Learning code
Maximum Working Current: 10A
Output Mode: Without voltage output (also called Contact output)
Step-down approach: resistance-capacitance (RC)

Transmitter:
Buttons: 6 Buttons
Working Voltage: DC12V
Remote Control Distance: 150m/492ft
Encode: Fixed code by soldering and learning code

Operating Mode:
JOG: Single relay will stay on only as long as corresponding remote key is pressed.
Self-locking: Press corresponding key for on, press same key again for off, each relay independently. Interlock: For each relay: press corresponding key for on (all others off).

Program Mode in:
After cleared previous mode, the LED turns on when press the programming key, press "3" button on the transmitter, the LED turns off, the transmitter with receiver has been paired successfully. The working mode is "Self-locking".
After cleared previous mode, the LED turns on when press the programming key, press "2" button on the transmitter, the LED turns off, the transmitter with receiver has been paired successfully. The working mode is "Interlock"
After cleared previous mode, the LED turns on when press the programming key, press "1" button on the transmitter, the LED turns off, the transmitter with receiver has been paired successfully. The working mode is "JOG".

Reprogram:
Hold the button down (about 3 sec.) until the LED lights up, then push a button on the transmitter. You should see the LED flash rapidly to show that it is accepting the signal. Release the button and you are finish link transmitter with receiver.

Package:
1 x Receiver
1 x Transmitter
1 x Battery for transmitter
