UNO R3 Board ATmega328P CH340 Development Kit Arduino

UNO R3 Board ATmega328P CH340 Development Kit Arduino Microcontroller Board with USB Cable Compatible to Arduino UNO R3 Robot

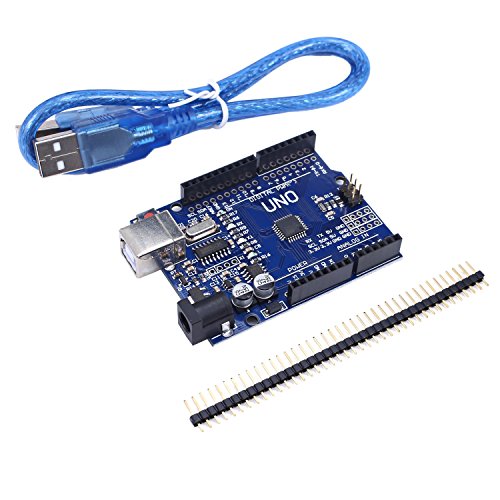

This is a microcontroller board based on the ATmega328. It has 14 digital inputoutput pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Uno differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the Atmega16U2 (Atmega8U2 up to version R2) programmed as a USB-to-serial converter. Technical Specifications Microcontroller: ATmega328 Operating Voltage: V5 Input Voltage (recommended): 7-12V Input Voltage (limits): 6-20V Digital IO Pins: 4 (of which 6 provide PWM output) Analog Input Pins: 6 DC Current per IO Pin: 40mA DC Current for 3.3V Pin: 50mA Flash Memory: 32 KB (ATmega328) of which 0.5 KB used by bootloader SRAM: 2 KB EEPROM: 1 KB Clock Speed: 16 MHz Package Including 1 x Compatible uno R3 Development Board 1 x USB OTG Cable

UNO R3 Board ATmega328P CH340 Development Kit Arduino Microcontroller Board with USB Cable Compatible to Arduino UNO R3 Robot
