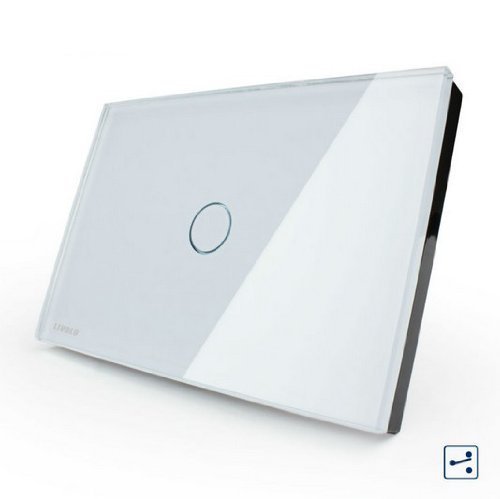

US/AU Standard, VL-C301S-81,1-gang 2-way, Touch Screen Light

US/AU Standard, VL-C301S-81,1-gang 2-way, Touch Screen Light Switch, White Crystal Glass Panel
- 2 way switch, 1 light can be controlled by 2 or 3 different switch.
- Home Light Touch Control, Crystal Glass Panel. Perceive the essence through the appearance
- Luxury glass panel, combine wall switch with fashion, crystal great texture
- Perfect flat plate, smooth gorgeous. Exquisite craftwork, well polished, luxurious experience
- Capacitive touch sense, sensitive touch control, feeling like smart cell phone touch. Backlight indicator, luminated more considerate
Specification:
Mechanical Life: 100,000 Times of Operation
Max. Voltage: AC 110-250V/50-60Hz
Max. Current: 5A
Size: 118mm*72mm*33mm
Model Number: VL-C301S-81
Panel material: Crystal Glass
Total Rated Load: 2000W
Function: Touch Control
Packaging Details: Carton box
Operating Environment: -30~70 Centigrade; Less than 95% RH
Self Consuming Power: Less than 0.1mW

Features:
Perceive the essence through the appearance.
Luxury glass panel,combine wall switch with fashion,crystal great texture.
Exquisite craftwork,well polished,luxurious experience.
Excellent quality,both appearance and built-in are impeccable.
Capacitive touch sense,sensitive touch control,feeling like smart cell phone touch.
Backlight indicator, red&blue indicator shows the on/off clearly,luminated more considerate.
Fire retardant,toughened glass with perfect fire resistance ensures the highest security.
Damp-proof,available for humid operation.
Built-in Microchip intelligence chip.
Non-discoloring, always keep new as time going.
Installation is as same as normal light switch, so does not require Negative line. Replace traditional wall switch completely and smoothly. Using with all types of lights including incandescent, fluorescent lamps, tubes, energy saver and motion sensor lamps and so on.

Special Notes:
The electric power should be off during installation.
Wiring must be done according to the wiring diagrams.
Each load capacity is minimum 15W and maximum 1000W.
The size of the installation screw hole is 83mm, and the dimension of mounting box is at least 110mm*60mm*50mm.
If the touch testing is operated without the glass panel, please shut down the power first, then fix the switch and install the glass panel, connect the power last.
Country USA
Brand NIMTEK
Manufacturer NIMTEK
Binding Tools & Home Improvement
ItemPartNumber CECOMINOD030277
Model NIMTEK VL-C301S-81
Color White
EANs 6965191931066
ReleaseDate 0000-00-00

Country	USA
Brand	NIMTEK
Manufacturer	NIMTEK
Binding	Tools & Home Improvement
ItemPartNumber	CECOMINOD030277
Model	NIMTEK VL-C301S-81
Color	White
EANs	6965191931066
ReleaseDate	0000-00-00

US/AU Standard, VL-C301S-81,1-gang 2-way, Touch Screen Light Switch, White Crystal Glass Panel
