UV250- 410nm UV Meter UV Integrator Radiometer UV Tester

UV250- 410nm UV Meter UV Integrator Radiometer UV Tester Detector Monitor Checker
- The UV-Integrator is used to measure UV energy and UV does of different light sources,especially on printing machines.It is ideal to ensure quality control of printing an drying processes.
- The UV radiation source:1KW MH Lamp, distance:50cm (20'')
- It is measuring an integral in the spectral range from 250-410nm,with a peak at the area of 330nm.
- By addition of the incidence of the light quantities during the exposure cycle,relative values are calculated.
- Because of uneven radiation distribution of the UV-light source and different type of construction of the measuring devices by different manufacture, different readings may appear under the same measurement conditions.
he product usually takes 7--13 business days to arrive to your hand after your order is confirmed

Specifications

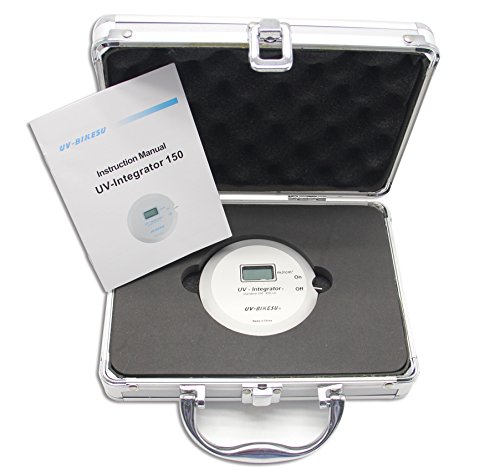

The UV-Integrator 150 is a high quality UV measuring instrument.
The UV-Integrator 150 is a high quality UV measuring instrument. It is used to measure UV energy of different light sources, especially on printing machines. It is ideal to ensure quality control of printing and drying processes.
Small size, heavy duty pass-through Integrator with a diameter of 90 mm. It is reliable and simple to use.
Technical Data:
Spectral range: UV 250- 410 nm
Measuring range: 0 to 5,000 mW/cm2
Display: 6-digit LCD
Display range: 0 to 999,999 mJ/cm2
Power source: long life 3.6 V Lithium Battery
Power consumption: 100 uA
Battery service life: 10,000 hrs
Dimensions: ?3.5?(90 mm), height (12 mm)
Weight: approx. 5.25 ounce (150 grs.)
Temperature range: 0 to 45?Centigrade
Heat protection: Heat shield on back plate
Base Accuracy:Â +5 %
Â While on the conveyer belt, the UV-Integrator 150 can withstand max. 110Â° Centigrade for up to 10seconds
NOTE:
we will send the product to you as soon as possible
If you have any questions , please feel free to contact us
