Uniweld RUH8217 Medium/Heavy Duty Single Stage Hydrogen

Uniweld RUH8217 Medium/Heavy Duty Single Stage Hydrogen Regulator with a CGA350 Inlet
- 2" Tri-layered reinforced neoprene diaphragm.
- CGA350 Inlet, Maximum Inlet:3000 PSIG
- Large Brass T-handle for Smooth, Accurate Adjustments.
- Externally serviceable reseating pressure relief device (PRD). PRD not designed to protect downstream equipment.
- Delivery Pressure: 5-125 PSIG

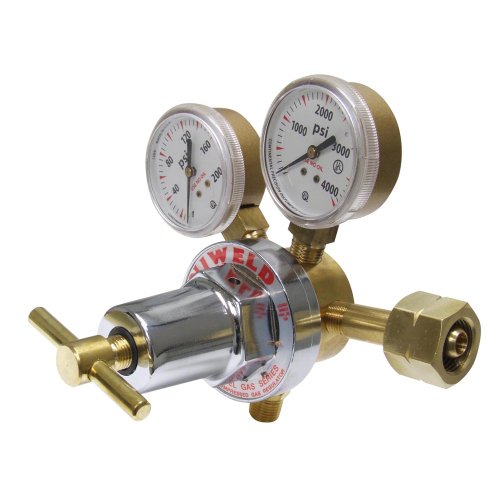

The Uniweld RUH 8217 is a medium/heavy duty single stage hydrogen regulator with a machined brass body, polished chrome bonnet, and easy to read single scale single, 2 inch, 0-4000 PSI Contents Gauge (Part No. G7S) and 0-200 PSI Delivery Gauge (Part No. G4S). The regulator has a CGA350 inlet connection, â€œBâ€ Left Hand 9/16 inch-18 Male outlet connections, with a delivery pressure of 5-125 PSI. Product also includes an externally serviceable pressure relief device (PRD) which protects the regulator. The PRD is not designed to protect the downstream equipment. Since hydrogen is flammable, this regulator must be used outside in open air and not in an enclosed space. If used in an enclosed space, the PRD must be vented to outside open air. Uniweld single stage regulators are used for general purpose applications where nominal delivery pressure changes, due to decreasing cylinder pressure, do not affect operations. Single stage regulators have greater flow capacity than two stage models. Made in U.S.A.
Country USA
Brand Uniweld
Manufacturer Uniweld
Binding Tools & Home Improvement
ItemPartNumber RUH8217
Model RUH8217
UnitCount 1
UPCs 688456110124
EANs 0688456110124
ReleaseDate 0000-00-00

Country	USA
Brand	Uniweld
Manufacturer	Uniweld
Binding	Tools & Home Improvement
ItemPartNumber	RUH8217
Model	RUH8217
UnitCount	1
UPCs	688456110124
EANs	0688456110124
ReleaseDate	0000-00-00

Uniweld RUH8217 Medium/Heavy Duty Single Stage Hydrogen Regulator with a CGA350 Inlet
