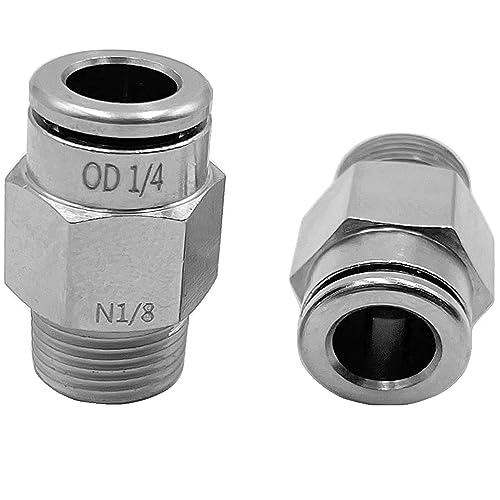

Utah Pneumatic 1/4"OD 1/8"NPT Air Union Male Push Air Fitting

Utah Pneumatic 1/4"OD 1/8"NPT Air Union Male Push Air Fitting Straight Nickel-Plated Brass Pneumatic Push Connect Fitting (5 Pack)
- Type:Push In Male Connector. Size:1/4”od tubing 1/8”NPT. Weight:18.5g od tubing air fitting quick release air line fittings
- Fluid Admitted:Air, Vacuum, air fittings (No Freezing)
- Working Pressure:0-1.0mpa | 0-150psi. Proof Pressure:1.5.Mpa | 150 psi push fittings tube coupler airline quick connect
- Negative Pressure-100Kpa | -29.5 In Hg. Body:Nickel Plated Brass Seal, O-Ring NBR pushlock air fittings air fittings
- Working Temperature: 0-60°C | 32～140°F. Applicable Tube:PU / PA / PE / PVC tube connectors fitting ptc air fittings
CAUTION
1.The tube connectors are primarily made for air and water . Other fluid types are highly prohibited.
2. The use of pneumatic connector is limited to areas that are highly prone to fire outrage
3. Don't use the connections in areas whose water temperature is above 120'C
4. To avoid leakages and damage,you're advised to resist the temptation of adding extra loads to the push connectors
USER GUIDE
Carefully examine the tube connectors ends for a right angle cutting. Don't also forget to check the external connectors surface for any scratch.
You need to consider the following guidelines during installations
Fix the air hose connector into the joint ; there are two sections around this region namely :
1 Locking claw
2 Sealing ring : it's important to insert the tube into this ring.
Use sleeve for fittings connection and disconnection.Note that the sleeve is an oval shaped
plumbing material that is essentially used for assembling and disbanding purpose. The round
sleeve is available for any plumbing needs.On the other hand, there is limited space for the oval sleeve.
Once the connection has been established ,pull the connectors to confirm their firmness.
Use the right tool to tighten the external hexagonal and internal hexagonal parts of the tube
fitting. It's crucial for you to use the approved torque on screws. The use of other types of
torque can damage thread and further lead to leakages . Low quantity of torque can as well lead
to loosen screw and leakages.
Adjust the tubes direction after the screws have properly the tightened. In a situation where the
adjustment is quite difficult to achieve,use the recommended torques to change the direction of
the tubing.

Country	USA
Brand	utah pneumatic
Manufacturer	utah pneumatic
Binding	Tools & Home Improvement
ItemPartNumber	brasspc1418
Model	brasspc1418
Color	Brass
Size	1/4" od 1/8" npt
UnitCount	5
UPCs	662187378060
EANs	0662187378060
ReleaseDate	0000-00-00

Utah Pneumatic 1/4"OD 1/8"NPT Air Union Male Push Air Fitting Straight Nickel-Plated Brass Pneumatic Push Connect Fitting (5 Pack)
