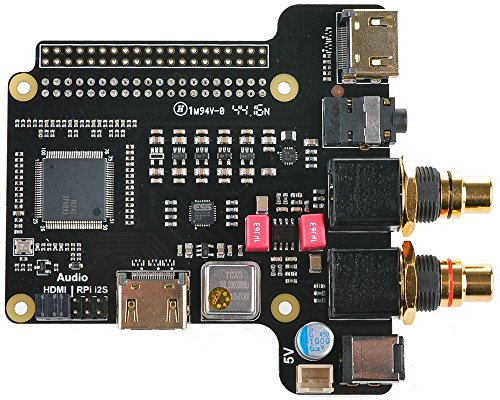

WINGONEER WX4000 Multifunction Expansion Shield for Raspberry

WINGONEER WX4000 Multifunction Expansion Shield for Raspberry Pi 1 Model B+/ 2 Model B / 3 Model B
- Supports Operating System Moode Audio Player, OSMC , Openelec, Raspbian Jessie, Rune audio
- High-quality Burr-Brown DAC for best sound quality; It is recommended to use with power adapter 5V 4A
- Use the ESS Technology flagship DAC chipset (ES9018K2M)
- 127dB DNR -120dB THD+N
- It can playback upto 384khz I2S/DSD256 with Raspberry Pi 3 (Over HDMI, Moode Player)
WINGONEER trademark Reg.NO:4747611

Key Features:
- High-quality Burr-Brown DAC for best sound quality
- Use the ESS Technology flagship DAC chipset (ES9018K2M)
- 127dB DNR -120dB THD+N
- It can playback upto 384khz I2S/DSD256 with Raspberry Pi 3 (Over HDMI, Moode Player)
- Used the Texas Instruments Burr-Brown OPA2604 low noise OP AMP
- Used the ultralow phase noise 100MHz HiFi TCXO
- Used the Texas Instruments ultra-low-noise voltage regulator
- Gold-plated RCA connectors
- Supports up to 1TB 2.5-inch SATA hard drives
- Selectable HDMI audio or Raspberry Pi i2S audio
- Supports SPDIF Optical Digital Audio
- Supports HDMI high-bit-rate (HBR) audio
- High quality video performance
- 3.5mm analog stereo jack output
- Allows you to split the audio stream from a HDMI signal
- No HDMI output connection is required to receive audio at the analog and optical outputs
- Connects directly to the Raspberry Pi - no additional cables needed
- Can be used individually with only 3 wire I2S signal connected from other i2s interface
- Powers the Raspberry Pi - no additional power supply
- Easy DIY with Raspberry Pi

Specification:
- Power supply: +5Vdc +/-5%(It is recommended to use the power adapter 5V 4A)
- Input Ports: 1 x HDMI
- Three wire Raspberry Pi I2S Input (LRCK - GPIO19, BCK - GPIO18, DATA - GPIO21, GND)
- Output Ports: 1 x HDMI, 2 x RCA connectors, 1 x 3.5mm Phone Jack + Optical
- Analog audio output level: 2V RMS
- Resolution/Sampling Rate: upto 32bit / 384KHz (ES9018K2M)
upto 24bit / 192KHz (Raspberry Pi I2S)
upto 24bit / 192KHz (Optical S/PDIF Audio)
- Optical Audio Format: LPCM 2CH, Dolby Digital 2~5.1CH, and DTS 2~5.1CH
- Size 85mm x 87mm

Packing List:
1 x WINGONEER WX4000 Expansion board
1 x HDMI bridge
