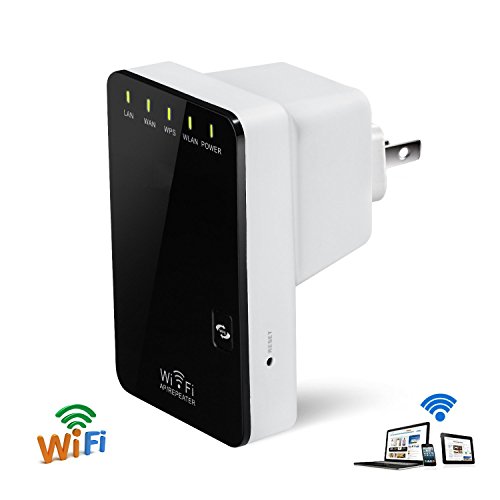

WOSUK Wireless-N Network Router/Repeater/Range Extender/Access

WOSUK Wireless-N Network Router/Repeater/Range Extender/Access Point/Bridge/AP Small Mini WiFi Router 2.4GHz 300Mbps 802.11n/g/b WPS Button With Built-in Antenna RJ45 Port Signal Booster (Mini Router)
- Easy to Install and Set, High Quality Network.
- Extreme Portability: Compact, lightweight design for travel, home, and office use.
- Multifunctional: Supports Router, Client, Bridge, AP mode. Convert your wired network into Wi-Fi instantly.
- Wall-plug / footprint reduction design: no need for additional power adapters or cords that take up space.
- High-speed Stability: Boosts your existing Wi-Fi coverage to deliver fast and reliable wired and wireless connectivity, extend WiFi up to 300Mbps.
Note:
1. Plug this router on your wall socket,search for the 'Wireless-N' wifi signal,then click on 'Connect'
2. Open your web browser and type the address ' http://192.168.10.253 ' , then you can login and start to setup.

300Mbps Wifi AP/Router
Wireless-N router works well as an ideal solution to access to Wi-Fi and enhance the signal for your study or work

5 optional working modes
1. Wireless Router Mode:
Create an instant private wireless network and share Internet to multiple Wi-Fi devices.
2. Repeater Mode:
Receives and broadcasts your existing wireless signal to extend wireless range.
3. Access Point Mode:
Connect to a wired network and transform wired Internet access into wireless allowing multiple devices/users to share the Internet.
4. Client Mode:
Connects to another device via Ethernet cable and acts as an external adapter to send/receive wireless signal from your wireless network.
5. Bridge Mode:
Connect to an outdoor WISP (Wireless Internet Service Provider) AP to allow multiple devices/users share the same wireless internet connection.

Technical Specifications:
Wireless Standard: 802.11n, 802.11b/g
Frequency Band: 2.4 GHz
Wireless Speed: 300Mbps
Interface: Provides one 10/100Mbps Auto-Negotiation Ethernet WAN ports
Provides one 10/100Mbps Auto-Negotiation Ethernet LAN ports
Button: WPS Button, Reset Button
Wireless Security: WEP, WPA, WPA2, WPA Mixed, WPS
Wireless Coverage Control:15% - 100% Output Power
Antennas:2 internal omni directional antenna

Package List
1 x Mini Wifi Router
1 x RJ-45 Ethernet Cable
1 x User manual

Importantly:Any set up or product problems, please follow the user manual or contact us, so that we can help you solve these issues in timely.
