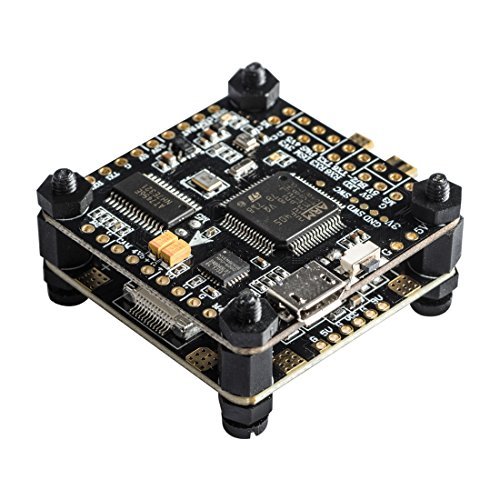

Wolfwhoop Tower Omnibus F4 Pro Flight Controller Integrated

Wolfwhoop Tower Omnibus F4 Pro Flight Controller Integrated OSD and SD Card Slot and PDB 2 in 1 Super Tower for RC Drone
- Integrated OSD configuring and SD slot
- Integrated with STM32 F405 chip, compatible with Betaflight and Cleanflight
- Firmware: Omnibus F4SD 3.2.2 (factory default), Supports receivers like SBUS PPM IBUS DSM2, etc
- The wiring has been optimized, which requires less soldering steps, thus making the assembling simple and quick when used in combination with 4051FC-PWB Please find more information from the detailed
- manual:http://wolfwhoop.com/uploadfile/2018/0108/20180108034231101.pdf Feel free to contact customer service by: amazon@wolfwhoop.com
flight controls features:
* the wiring has been optimized, which requires less soldering steps, thus making the assembling simple and quick when used in combination with 4051FC-PWB.
* IntegratedÂ with STM32 F405 chip, compatible with Betaflight and Cleanflight, (supports PWM, Oneshot, DHOTS150/300/600/1200) ESC with high operating speed, which achieves excellent flight experience. Moreover, it can generate powerfulÂ calculatingÂ ability and velocity, gives pilots easier, more stable and smooth flight experience.
*Support SD slot
*Size:36*36MM(4051FC)
*MPU 6000 6-axis gyroscope
* 280 barometer
*Supports receivers like SBUS PPM IBUS DSM2, etc.
* Easy and quick OSD configuring.
*Reserved soldering place for Buzzer and programmable LED light.
*Standard flight controller installation hole size: 30.5X30.5mmÂ Â
*Firmware: Omnibus F4SD 3.2.2Â (factoryÂ default)
*LED strip has already connected with A08 through short circuit in factory default setting, for future firmware upgrading, please distribute LED connector to A08 and Save. Otherwise LED strip will not work.
For example: resource LED_STRIP 1 A08 (distribute LED connector to A08 and Save)
4051FC-PWR
*ã€€Total 4 pairs ESC solder tabs are fit for X type frame
*ã€€Input: 2~4S LiPo ï¼Œ
* input: TVSã€€protection
* PDB: 4*30A, 4layers, 2oz copper
* BEC: 5V/2A
* BEC: 9V/2A
* Built-in current sensor
* dimensions:45*36MM
* Mounting: 30.5*30.5mmï¼Œ
* Weight: 8.5g Â±0.2g
Connector description:
ã€€ã€€ S1~S4: ESC signal 1~4
VCC: Lipo voltage input,
GND&G: GND
CRNT: current detection
+ã€€ã€€: ESC +
- : ESC -
9V: 9V for VTX
VCC: Lipo voltage input, battery voltage detection only
5v: output 5v to other devices(RX, FC,CMOS/CCD,etc)
G: GND
RSSI: RSSI input for RX
