XINPUGUANG 100w Flexible Solar Panels 400w 12V Solar System

XINPUGUANG 100w Flexible Solar Panels 400w 12V Solar System Kit Monocrystalline Cell Module 30A Controller for Off Grid Solar Battery Charge for RV Boat Trailer Cabin(400W)
- ✈Practicality: This solar panel kit can be used as a 12V off-grid system.suitable for use in areas where electricity is not available and where the city cannot reach, such as mountains, marine, deserts, and remote areas.
- ✈Easy Installation: The solar panel has 6 grommet mounting holes are available to attach fasteners，and can also be installed with silicone and adhesive tape.
- ✈Flexible: This panel is a good choice for curved surfaces of RV, boat,yacht,truck, car, cabin, camper , tent , trailer, golf cart or any other irregular surface.
- ✈Reliable: Advanced encapsulation material with multi-layered sheet laminations to enhance cell performance and provide a long service life.

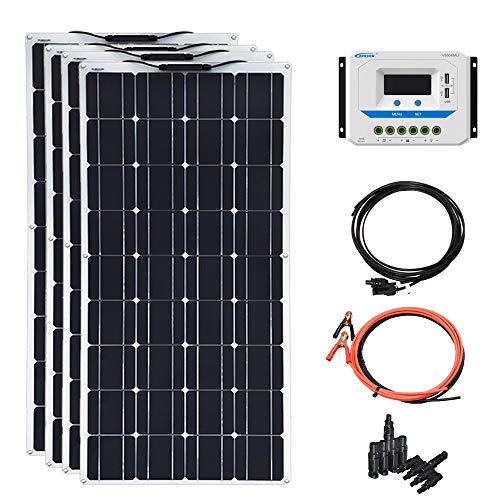

- ✈What you get: 100W*4 pcs flexible solar panel, 1 piece 30A solar controller, 1*3M cable with PV Connector,1*3M cable with alligator clip，4 in 1 in parallel connector
Shenzhen Puguang Solar Energy Co.,Ltd
The factory has modern and automatic equipment and facilities such as: solar cell sorting instrument, laser cutting machine, automatic soldering machine, automatic laminated machine, inspective machine and so on.
The factory has its own R&D department with experienced engineer and expert from famous university. The factory has the four stages QC check to guarantee the raw material, process of production, quality checking, packing without defective products.Our experienced manage team and skilled workers guarantee quality products and timely delivery.

Flexible solar panel are designed to provide a powerful charging solution for batteries and conform to almost any surface. Unlike other 'flexible'products, these use high-efficiency monocrystalline cells that produce more power per square foot than any other flexible panel on the market.

Technical Specifications

ã€Solar Cellã€‘MONO
ã€Maximum powerã€‘100w
ã€Maximum power voltageã€‘18V
ã€Maximum power currentã€‘5.55A
ã€Open circuit voltageã€‘22v
ã€Short circuit currentã€‘5.95A
ã€Number of cellsã€‘36pcs
ã€Size of moduleã€‘1175X540X3mm
ã€Temperature Rangeã€‘-20- +60 â„ƒ
ã€Tolerance Wattageã€‘ +/-5%
ã€Weight per pieceã€‘ 2.2kg
ã€Junction Box Typeã€‘IP65
ã€Length of Cablesã€‘ 90cm
ã€Cell Efficiencyã€‘ > 19.5%
ã€Module Efficiencyã€‘ > 19%
ã€Output toleranceã€‘+/-5%
ã€Standard Test Conditionsã€‘AM1.5 100mw/cm2 25 â„ƒ
ã€Temperature coefficients of Isc (%)ã€‘0.065+/-0.015%/ â„ƒ
ã€Temperature coefficients of Voc (%)ã€‘-(2.23+/-0.1) / â„ƒ
ã€Temperature coefficients of Pm (%)ã€‘-(0.5+/-0.05)/ â„ƒ
ã€Temperature coefficients of Im (%)ã€‘ +0.1/ â„ƒ
ã€Temperature coefficients of Vm (%)ã€‘-0.38/ â„ƒ

Country USA
Brand XINPUGUANG
Manufacturer XINPUGUANG
Binding Unknown Binding
Size 400W
UPCs 743811396947
EANs 0743811396947
ReleaseDate 0000-00-00

Country	USA
Brand	XINPUGUANG
Manufacturer	XINPUGUANG
Binding	Unknown Binding
Size	400W
UPCs	743811396947
EANs	0743811396947
ReleaseDate	0000-00-00

XINPUGUANG 100w Flexible Solar Panels 400w 12V Solar System Kit Monocrystalline Cell Module 30A Controller for Off Grid Solar Battery Charge for RV Boat Trailer Cabin(400W)
