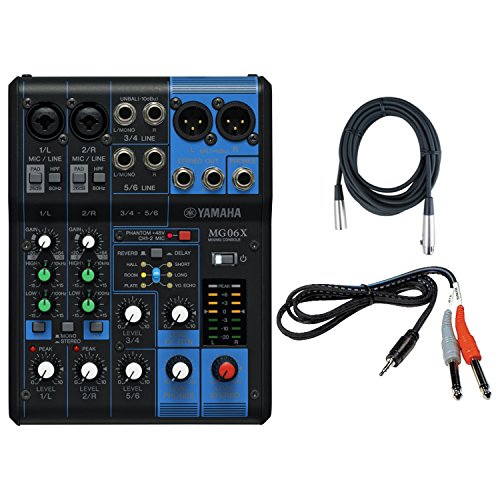

Yamaha MG06X 6 Input Stereo Mixer (with SPX Effects) w/Stereo

Yamaha MG06X 6 Input Stereo Mixer (with SPX Effects) w/Stereo 1/8" TRS to Dual 1/4" Breakout Cable and (1) 20' XLR Mic Cable
- 6-Channel Mixing Console
- Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
- 1 Stereo Bus
- "D-PRE" mic preamps with an inverted Darlington circuit
- High-grade effects: SPX with 6 programs
6-Channel Mixing Console
Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
1 Stereo Bus
"D-PRE" mic preamps with an inverted Darlington circuit
High-grade effects: SPX with 6 programs
XLR balanced outputs
PAD switch on mono inputs
+48V phantom power
Metal chassis
Dimensions(WÃ—HÃ—D): 149 mm x 62 mm x 202 mm (5.9"x 2.4"x 7.9")
Net Weight: 0.9 kg (1.98 lbs.)

Outline
Mixing capability: On-board processors: SPX algorithm: 6 programs
I/O: Phantom power: +48 V
Input Channels: Mono[MIC/LINE]: 2
: Stereo[LINE]: 2
Output Channels: STEREO OUT: 2
: PHONES: 1
Bus: Stereo: 1
Input Channel Function: PAD: 26 dB (Mono)
: HPF: 80 Hz, 12 dB/oct (Mono)
: EQ HIGH: (Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
: EQ LOW: (Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
: PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
: Level Meter: 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]
General specifications
Total harmonic distortion: 0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min
Frequency response: +0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level: Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150?, GAIN knob: Max)
: Residual output noise: -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk: -88 dB
Power requirements: PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha
Power consumption: 12 W
Dimensions: W: 149 mm (5.9")
: H: 62 mm (2.4")
: D: 202 mm (7.9")
Net weight: 0.9 kg (1.98 lbs.)
Accessories: Included Accessory: AC Adaptor, Owner's Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
Others: Operating Temperature: 0 to +40?C

Country	USA
Binding	Electronics
Brand	YAMAHA
Color	Black
EAN	0700355947486
IsAutographed	0
IsMemorabilia	0
Label	Yamaha
Manufacturer	Yamaha
Model	MG06X-COMBO-AMZ-1
MPN	MG06X-COMBO-AMZ-1
PartNumber	MG06X-COMBO-AMZ-1
Publisher	Yamaha
Size	11.6 x 10.5 x 4.7 inches
Studio	Yamaha
Warranty	Null.
ReleaseDate	0000-00-00

Yamaha MG06X 6 Input Stereo Mixer (with SPX Effects) w/Stereo 1/8" TRS to Dual 1/4" Breakout Cable and (1) 20' XLR Mic Cable
