The sequencer allows you to connect up to eight outputs and control them in sequential patterns. Sequences that would take as long as 4 days to program without littleBits will only take you seconds!

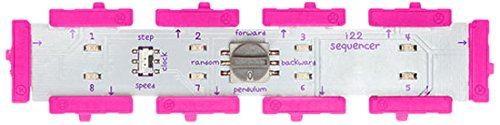

littleBits sequencer
- Automatically cycle through the entire sequence
- Control the speed of the sequence using dimmers or sensors
- Run the sequence four ways: forwards, backwards, pendulum, or random
- Swap automation for full control and step through each part of the sequence using a button, sound trigger, or any other high signal input
The sequencer allows you to connect up to eight outputs and control them in sequential patterns. Sequences that would take as long as 4 days to program without littleBits will only take you seconds! There are two clock modes that control when the module transitions from sequence step to sequence step. In "step" mode the sequence transitions to a new sequence step on input low-to-high transitions. In this mode, the clock output is high when the input is above 2.5V, and the clock output is low when the input is below 2.5V. In "speed" mode the sequence transitions to a new sequence step at a fixed frequency. The step frequency is proportional to the voltage at the input. At 0V input, the frequency is 0Hz (the sequencer does not step). At 5 volts the step frequency is approximately 80Hz. In this mode, the clock output is a square waveform at the step frequency The four sequence modes control the order in which the 8 sequenced outputs are activated. At any given time, there is exactly one of the 8 sequenced outputs set to 5V. All other outputs are set to 0V. "Forward" mode sets output 1 to 5V, then on the next step output 2 is set to 5V, and so on. After activating each output in turn, the sequence then continuously repeats, starting at output 1. "Backwards" mode is the same as "forward" mode, except that the sequence steps from output 8 to output 1 and is set to 5V at each step. "Pendulum" mode sets output 1 to 5V, then on the next step output 2 is set to 5V, and so on. Upon reaching output 8, the sequence reverses and steps down from 7 to 1. "Random" mode sets a randomly selected output to 5V at each step.

Country	USA
Binding	Tools & Hardware
Brand	littleBits
EAN	0810876020299
IsAdultProduct
Label	LittleBits Electronics
Manufacturer	LittleBits Electronics
Model	650-0008-RS
MPN	650-0008-RS
PartNumber	650-0008-RS
Publisher	LittleBits Electronics
Studio	LittleBits Electronics
ReleaseDate	0000-00-00

littleBits sequencer
