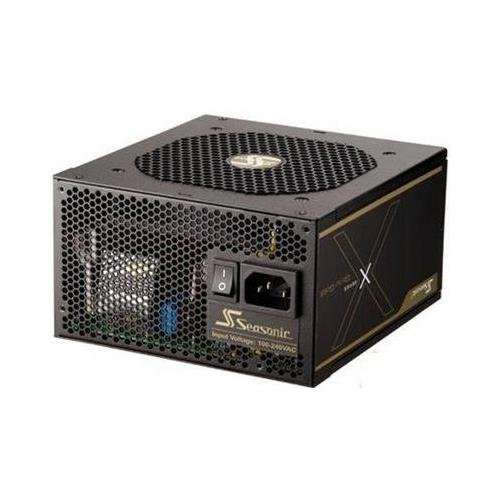

seasonic ss-650km3 x-650 650w 80 plus gold atx12v / eps12v power supply

Specifications

• Mfr Part Number: X-650 ; SS-650KM3
• Features:
  • 80PLUS Gold Certified Super High Efficiency

  • Full Modular Cabling Design
  • Patented DC Connector Module with Integrated VRM (Voltage Regulator Module)
  • DC to DC Converter Design
  • Seasonic Hybrid Silent Fan Control
  • Sanyo Denki San Ace Silent Fan
  • Conductive Polymer Aluminum Solid Capacitors
  • Highly Reliable 105°C Japanese Brand Capacitors
  • Tight Voltage Regulation (±1%)
  • Active Power Factor Correction (99% PF Typical)
  • High +12V Output
  • High Current Gold Plated Terminals
  • Dual Sided PCB Layout
  • Ultra Ventilation (Honeycomb Structure)
  • Multi-GPU Technologies Supported
  • All-in-One DC Cabling Design
  • Easy Swap Connector
  • Universal AC Input (Full Range)
• Type: Intel ATX12V / EPS12V
• Total Power: 650W
• Input:
  • Voltage: 100 - 240V
  • Current: 8.5 - 4A
  • Frequency Range: 50/60Hz
• Power Factor Correction: Active PFC
• Efficiency: 80 PLUS Gold/ Energy Star/ ErP Lot 6 2013 Compliant
• Protection: OPP/ OVP/ UVP/ OCT/ SCP/ OTP
• Output: +3.3V @ 25A, +5V @ 25A, +12V @ 54A, -12V @ 0.5A, +5Vsb @ 3A
• Connectors: 1x 20/24pin Main Power Connector, 1x 4/8pin CPU Connector, 1x 8pin CPU Connector, 4x 6/8pin PCI-Express Connectors, 10x SATA Connectors, 5x 4pin Peripheral Connectors, 1x Floppy Connector (Y-adapter)
• Cooling System: Sanyo Denki San Ace Silent Fan
• Safety: TUV, CB, PCT, C-Tick, CCC, CE, FCC, RoHS, WEEE
• Dimensions (WxLxH): 150.0 x 160.0 x 86.0 mm
