uxcell 10 Pcs 15/64" Slot PCB Photo Interrupter Sensor HY860F w Mount Bracket
Product ID: B008DG96NU
Condition: New
Payflex: Pay in 4 interest-free payments of R158.25. Read the FAQ
R 633
includes Duties & VAT
Delivery: 10-20 working days
Ships from USA warehouse.
Secure Transaction
VISA
Mastercard
payflex
ozow
Product Description

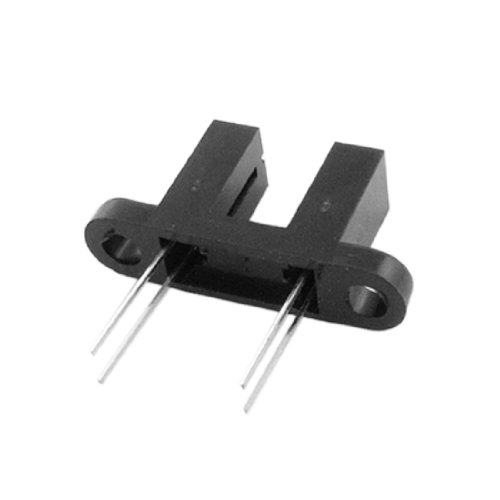

uxcell 10 Pcs 15/64" Slot PCB Photo Interrupter Sensor HY860F w Mount Bracket
- Product Name : Slotted Optical Switch;Model : HY860F;Output Type : Photo Transistor;Peak Emission Wavelength : 940nm;IR Diode Forward Current : 50mA
- IR Diode Reverse Voltage : 5V;Transistor Power Dissipation : 75mW;Transistor Collector Current : 20mA;Photo Transistor Collector-emitter Voltage : 30V;Photo Transistor Emitter-collector Voltage : 5V
- Diode Power Dissipation : 100mW;Operating Temperature Range : -55~100 Celsius Degree;Number of Pins : 4;Slot Width : 6mm/15/64'';Slot Depth : 10mm/0.39''
- Pin Length : 10mm/0.39'';Pitch : 10.5mm/2.41'', 2.5mm/0.1'';Hole Dia. : 3mm/0.12'';Total Size : 25 x 22 x 6mm/1'' x 0.9'' x 0.2''(L*W*H)
- Material : Plastic, Metal;Color : Black;Net Weight : 9g;Package Content : 10 x Slotted Optical Switch w Bracket
- Features a built-in bracket for easy mounting.Consisted of an infrared emitter and a phototransistor, is located face-to-face on the optical axes in a leaded package.During operation, output phototransistor switch from ON state to OFF state when object is inserted into gap between emitter and sensor.Used for object detection and automatic counting, such as printer, scanner, copy machine, facsimile machine and vending machine, etc.
Technical Specifications
Country
USA
Binding
Tools & Home Improvement
Brand
uxcell
Label
uxcell
Manufacturer
uxcell
Model
a11090600ux0293
MPN
a11090600ux0293
NumberOfItems
1
PartNumber
a11090600ux0293
Publisher
uxcell
Studio
uxcell
