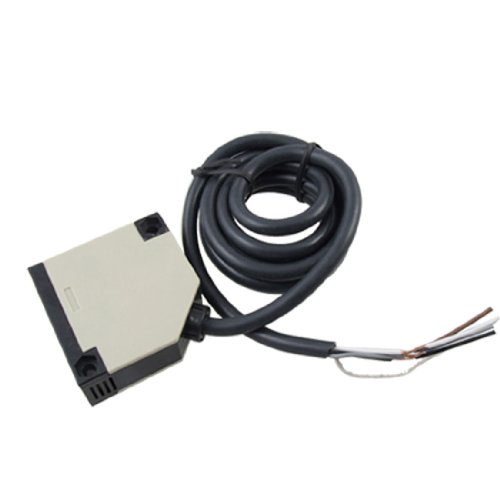

uxcell E3JK-R4M2 DC 12-24V Retroreflective Photoelectric Switch w Reflector Panel
Product Description
uxcell E3JK-R4M2 DC 12-24V Retroreflective Photoelectric Switch w Reflector Panel
- Product Name : Photoelectric Switch;Model : E3JK-R4M2;Type : DC 5-wire;Detection Distance : 4m
- Work Voltage : DC 12-24V;Relay Output : AC 250V 3A (Max);Ambient Temperature : Operating:-20 - 55 DegreeStorage:-30 - 70 Degree;Response Time : < 30ms
- Directional Angle : Sensor:1 - 5 DegreeReflector: 40 Degree Min.;Size : 5 x 5 x 1.8cm / 3.1" x 3.1" x 0.7(L*W*H);Reflector Panel Size : 6.5 x 4 x 0.8cm/2.6'' x 1.6'' x 0.3'' (L*W*T)
- Cable Length : 125cm/ 49.2";Weight : 155g;Indicator Light Color : Red
- Material : Plastic, Metal;Color : Black, Gray;Package Content : 1 x Photoelectric Switch1 x Reflector Panel1 x Mounting Bracket(with screws,nut)
Photoelectric Switch control by infraredray, as a apporach sensor, includeing a transmitter and receiver in it.A retroreflective arrangement places the transmitter and receiver at the same location and uses a reflector to bounce the light beam back from the transmitter to the receiver. An object is sensed when the beam is interrupted and fails to reach the receiver.Can be applied in security system, manufacturing industry.US users need to buy another voltage transformer(not included here.)
Technical Specifications
