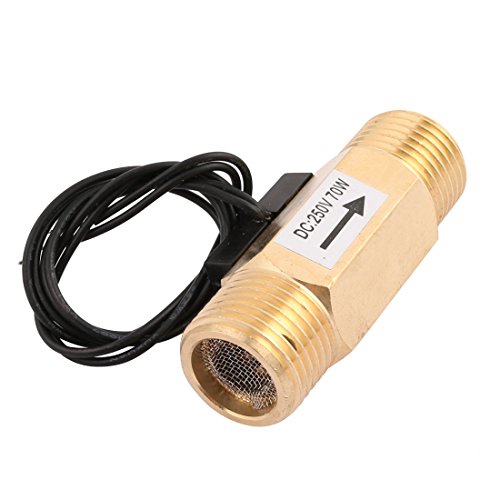

uxcell G1/2 inches Thread Liquid Water Flow Sensor Switch

uxcell G1/2 inches Thread Liquid Water Flow Sensor Switch Flowmeter Fluidmeter 1.2-12L/min 70W
- All materials are in line with ROHS testing standards.
- Copper material, small size, easy to install.
- The water flow sensor is applied for water heater, and can be used as flow switch.
- Maximum water pressure: 1.5MPa, flow range: 1.2-12L/min.
- Stable, high temperature, low water pressure start, safe.
Descriptions:
1. The Water Flow Sensor is light, nimble outline, small size and easy to install. All materials are in line with ROHS testing standards.
2. There is an integrated hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry.
3. Stable, high temperature, low water pressure start, safe.
4. Can use for Water heaters, credit card machines, water vending machine, flow measurement device.
5. Water Flow Switch: Two Line Type, Normally Open, switch signal output, open when water flow through; close when no water flow through.

Specifications:
Product Name: Water Flow Switch
Material: Copper(Shell)
Liquid Temperature: Not More Than 60C
Start Flow Range: 1.2L/min
Flow Range: 12L/min
Power: 70W
Max. Voltage Range: AC 220V
Max Current: 1A
Load Current: 1.5A
Working Pressure: 0.05-1.2MPa
Maximum Water Pressure: 1.5MPa
Connector: Male SM-3P Plug
Cable Length: 35cm
Size: 62mm x 26mm x 24mm(L*W*H)
External Thread Diameter: G1/2 inch
Tube Length: 62mm
Color: Gold Tone
Net Weight: 114g

Package Included:
1 x Water Flow Switch
