Diymore 12V LED Display Multi-Function Timer Relay

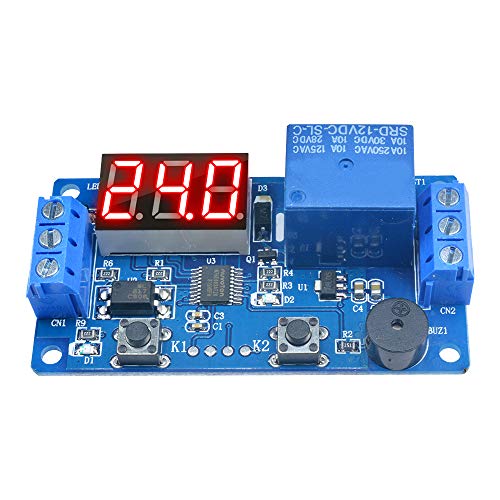

Diymore 12V LED Display Multi-Function Timer Relay Programmable Digital Readout Module Delay Switch Board with Car Buzzer(2 Buttons)
- Anti-reverse voltage input circuit, worry-free wiring.
- Set the parameters of power and permanent memory.
- Signal input optocoupler isolation, anti-interference ability.
- Powerful flash MCU online programming capabilities, according to user needs can contact the manufacturers to customize the functionality.
- Receives a trigger signal to start the countdown, while the relay, timing the end of the relay to stop working, time to recover to the set, waiting for the next trigger.
Working Current: 50mA
Quiescent Current: 20mA
Life: more than 10 million times
Working temperature: -40 ~ 85â„ƒ
Working voltage: DC12V (normal operating voltage DC 10V-16V)
Output capability: You can control the DC or within AC 220V5A within30V 5A
Source: DC4V ~ 20V (positive trigger common power button, PNP sensors, PLC signals, etc.)

Instructions:
Click K1 enter the time setting, one hundred digital start flashing,
Then press K2, one hundred the number of changes;
Then click K1 ten digital start flashing, then press K2, the tens digit changes;
Then click K1 bit digital start flashing, then press K2, single-digit change;
Then click K1, exit the setting, LED no longer flashes.

Normal digital tube display,
Press K2, shifting the decimal point,
A decimal point indicates 0-999 seconds in 10 bit from 0 to 99.9 seconds with no decimal point represent 0-999 seconds,then the time setting is completed.

Package Included :
1 x 12V Display LED Timer Relay Programmable Module Delay Switch Board Car Buzzer
Country USA
Brand diymore
Manufacturer IP
Binding Office Product
ItemPartNumber DS
Model 4524642
Color Blue
UPCs 611029134609
EANs 0611029134609
ReleaseDate 0000-00-00
