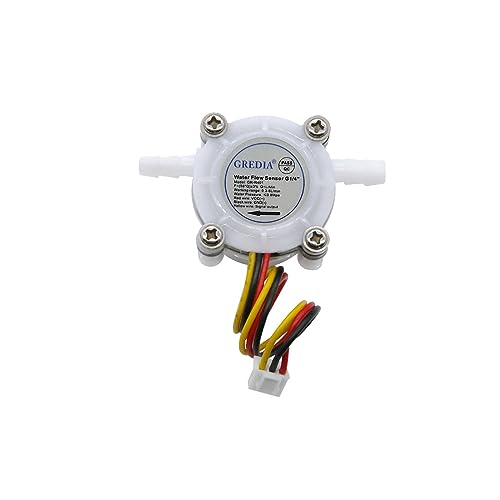

GREDIA 1/4" Water Flow Sensor Food-Grade Switch Hall Effect

GREDIA 1/4" Water Flow Sensor Food-Grade Switch Hall Effect Flowmeter Fluid Meter Counter Connect Hosepipe 0.3-6L/min
- Connect to a hosepipe whose inner diameter is about 5 to 7 mm( G1/4 inch connector)
- Flow range: 0.5-3L/min, Water Pressure: ≤0.8Mpa
- Working voltage: DC 5-24 V, F=(98*Q)±3%, Q=L/Min
- Material: food grade plastic, all raw materials conform to the ROHS test standard
- Wide application: It is mainly used in water heater, coffee machine, water purifier, drinking fountain, beverage machine, campus smart card equipment, etc.
Our products are fine made with nice materials and good workmanship, strict quality control, guarantee in after service.

The flowmeter is light and handy, easy to install. The sealing ring make the connection firm, the sealing performance is good and the problem of water leakage is avoided.

More details about the flow meter:
F=(98*Q)Â±3%, Q=L/Min, error: Â±3%
Working range: 0.3-6L/min
Working voltage: DC 5-24 V
Water Pressure: â‰¤0.8Mpa
Liquid temperature: 0-100â„ƒ
Maximum current consumptiont: 10 mA(DC 5V)
Size: 58mm x 34mm x 26mm(L*W*H)
Wire length: 15 cm
Refer to the wiring:
Red wire: VCC(+)
Black wire: GND(-)
Yellow wire: Signal output

Package:
1 x G1/4 inch flowmeter connect hosepipe
Country USA
Brand GREDIA
Manufacturer GREDIA
Binding Unknown Binding
ItemPartNumber GR-R401
Model GR-R401
Size G1/4" hosepipe
UnitCount 1
UPCs 606829106000
EANs 0606829106000
ReleaseDate 0000-00-00

Country	USA
Brand	GREDIA
Manufacturer	GREDIA
Binding	Unknown Binding
ItemPartNumber	GR-R401
Model	GR-R401
Size	G1/4" hosepipe
UnitCount	1
UPCs	606829106000
EANs	0606829106000
ReleaseDate	0000-00-00

GREDIA 1/4" Water Flow Sensor Food-Grade Switch Hall Effect Flowmeter Fluid Meter Counter Connect Hosepipe 0.3-6L/min
