Uxcell Flat Ribbon Cable 2 Row 20 Pin IDC Socket Connector, Light Gray, 10 Pieces
Product Description
Uxcell Flat Ribbon Cable 2 Row 20 Pin IDC Socket Connector, Light Gray, 10 Pieces

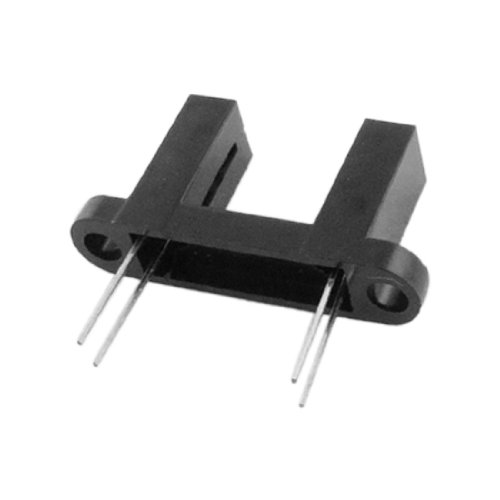

- Product Name: Slotted Optical Switch; Model: HY810H; Output Type: Photo Transistor
- Peak Emission Wavelength: 940nm; IR Diode Forward Current: 50mA; IR Diode Reverse Voltage: 5V
- Transistor Power Dissipation: 75mW; Transistor Collector Current: 20mA
- Photo Transistor Collector-emitter Voltage: 30V; Photo Transistor Emitter-collector Voltage: 5V
- Net Weight: 9g; Package Content: 10 x Slotted Optical Switch w Bracket
Features a built-in bracket for easy mounting. Consisted of an infrared emitter and a phototransistor, is located face-to-face on the optical axes in a leaded package. During operation, output phototransistor switch from ON state to OFF state when object is inserted into gap between emitter and sensor. Used for object detection and automatic counting, such as printer, scanner, copy machine, facsimile machine and vending machine, etc. Diode Power Dissipation: 100mW; Operating Temperature Range: -55~100 Celsius Degree; Number of Pins: 4; Slot Width: 10mm/25/64''; Slot Depth: 10mm/25/64''; Pin Length: 9mm/0.35''; Pitch: 14mm/0.55'', 2.5mm/0.1'' Hole Dia.: 3mm/0.12''; Total Size: 27 x 24 x 6mm/1.1'' x 1'' x 0.2''(L*W*H) Material: Plastic, Metal; Color: Black
